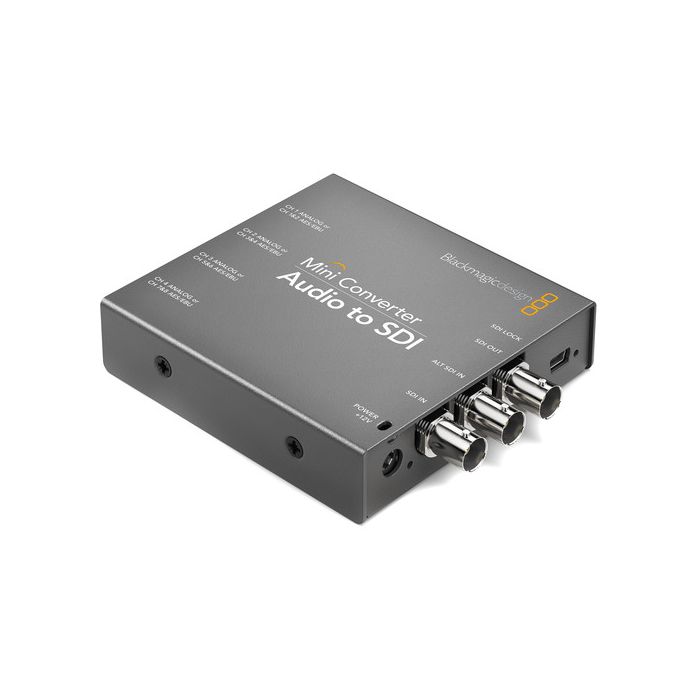

Blackmagic Design Mini Converter - Audio to SDI 2
by Blackmagic Design
Availability:
In stock
SKU
CONVMCAUDS2
Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design.
€267.50
€214.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Mini Converter Audio to SDI
- 12V Universal Power Supply
- Set of International Socket Adapters (for All Countries)
Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.
In addition to a dedicated SDI input the converter also features a redundant SDI input that allows you to run a back-up cable in case the first is lost in any way. This is useful in mission critical applications, especially outdoors or in crowded venues where there a higher chance of damage to the cable.
| SDI Input | 1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost) |
| Audio Input | 4 x 1/4" jacks support 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio |
| SDI Output | 1 x SDI on BNC (switchable between 3G/HD/SD) |
| SDI Auto Switching | Auto-detection of 3G/2K/HD/SD SDI SDI |
| Updates and Configuration | Via USB 2.0 high speed (480 Mbps) |
| Reclocking | Yes |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between HD and SD |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between 3G/HD/SD |
| SDI Format Support | 1080p/i at 60/59.94/50 1080p at 30/29.97/25/24/23.98 1080PsF30/29.97/25/24/23.98 720p60/59.94/50 525i59.94 NTSC 625i50 PAL |
| 2K Format Support | 2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF |
| Software Control | Mac OS X and Windows software upgrade via USB |
| Internal Software Upgrade | Via included updater application |
| Operating System | Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10 |
| Settings Control | Mini Switches or USB software |
| Power Supply | +12 V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 8.4 W |
| Operational Voltage Range | 12 VDC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.5 x 3.6 x 0.9" (11.5 x 9.2 x 2.3 cm) |
| Weight | 7.6 oz (215 g) |
