Blackmagic Design Mini Converter - SDI Distribution
by Blackmagic DesignBlackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Mini Converter SDI Distribution
- 12V Universal Power Supply with International Socket Adapters for All Countries

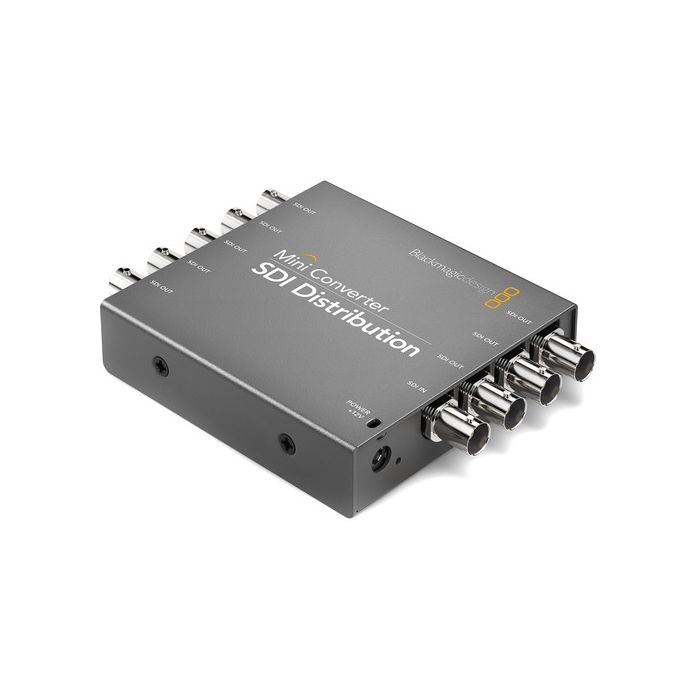

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
| Inputs | 1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI |
| Outputs | 8x SDI: Automatically match the SDI video input |
| Re-clocking | Yes |
| Supported Formats | NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Video Sampling | 4:2:2 and 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color Precision | 4:2:2 and 4:4:4 |
| Color Space | YUV and RGB |
| ASI Support | Yes |
| Power Supply | 12V universal power supply included |
| Power Consumption | 110V: 40mA 220V: 20mA |
| Voltage Range | 12-30V |
