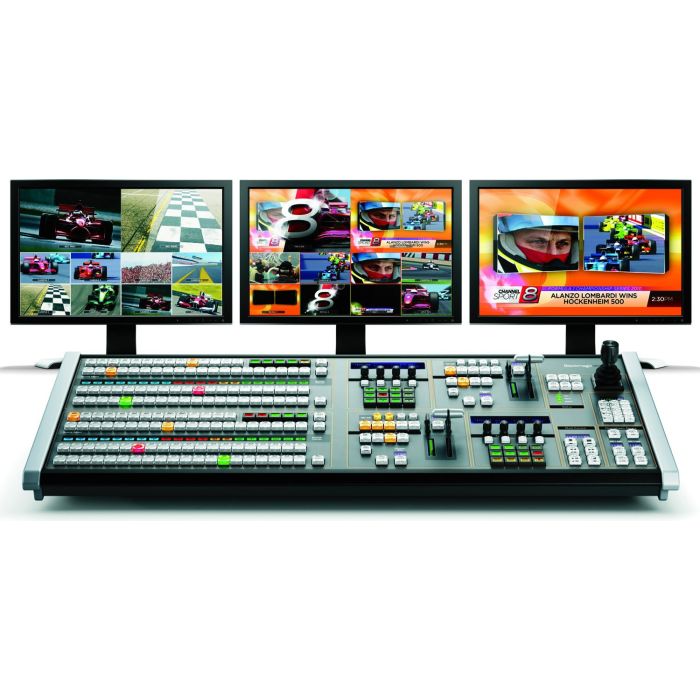

Blackmagic Design ATEM 2 M/E Broadcast Panel

by Blackmagic Design
Availability: 7-10 days delivery
SKU
SWPANEL2ME

Blackmagic Design ATEM 2 M/E Broadcast Panel is a perfect companion to a professional live switcher, such as Blackmagic Design's ATEM 2 M/E Production Switcher

€17,811.40 €14,249.12

Package includes

  • Blackmagic Design ATEM 2 M/E Broadcast Panel

The Blackmagic Design ATEM 2 M/E Broadcast Panel is a perfect companion to a professional live switcher, such as Blackmagic Design's ATEM 2 M/E Production Switcher (not included). With a broad field populated by high-quality buttons, knobs, T-bars, and a 3-axis joystick, you'll be able to customize your panel's operation to your exact needs and preferences – without compromise.

Complex, multi-layer productions deserve a versatile panel, and the ATEM 2 M/E certainly fits the bill for live broadcast events. All controls are at your fingertips, so you can instantly command the switcher to switch cameras and execute transitions, fades, DVE effects, and more. This 37" wide panel gives you plenty of elbow room in which to operate.

The ATEM 2 M/E Broadcast Panel connects to a switcher via 10/100/1000 BaseT Ethernet, and there's loop-through Ethernet for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB input.

  • Tri-color LED crosspoint buttons – 20 direct crosspoints and 40 shifted crosspoints
  • High-contrast RGB bitmap crosspoint labels
  • LCD bitmap buttons for menu control
  • On-air indicator
  • Transition preview, with transition rate display
Connections 10/100/1000 BaseT with loop output for additional control panels or computers
1 x USB for firmware updates
Buttons Tri-color LED crosspoint buttons (20 direct crosspoints; 40 shifted crosspoints) with high-contrast RGB bitmap labels
LCD bitmap buttons for menu control
Next transition selectors: BKG, Key1 - Key2 (per M/E)
DSK transition selectors: Auto, Cut, Tie/Pvw
Controls 3-axis joystick, numeric keypad, 2x fader bars
Operating System Aerospace-certified embedded OS
Redundant Power Yes
Input Voltage 12V
Power Consumption 75W
Dimensions (WxHxD) 4.8 x 37.27 x 14.14" (120 x 947 x 359mm)
Cutout HxWxD: 4.8 x 36.27 x 16.67" (120 x 921 x 423mm)
Weight 33.6 lb (15.25 kg)
