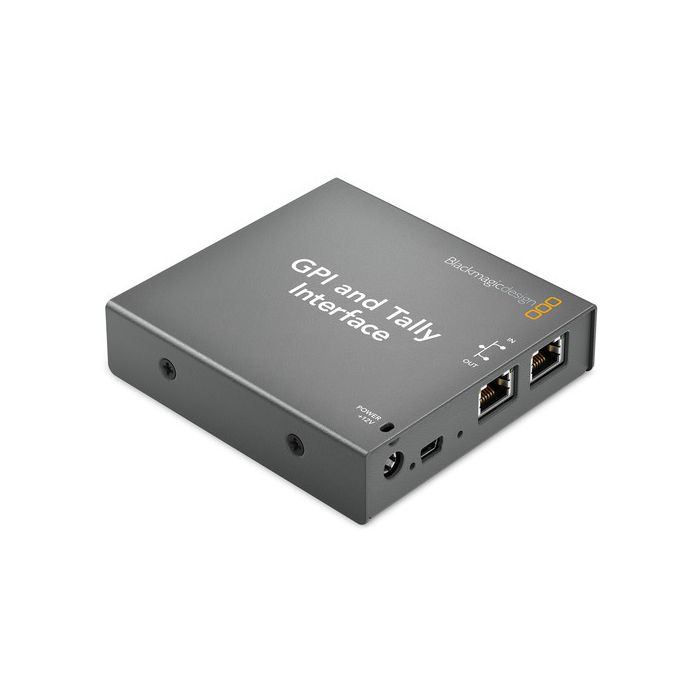

Blackmagic Design GPI and Tally Interface

Availability: 7-10 days delivery
SKU
SWTALGPI8

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals.

Regular Price HRK4,625.00 Special Price HRK4,162.50 HRK3,330.00

Package includes

  • Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
  • 12 V Power Supply

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

  • Displays tallies for indicating the on-air status of video signals
  • 8 contact closure inputs & 8 contact closure outputs
  • Compatible with ATEM switchers and Videohub routers
  • Connect to multiple interfaces offering enhance flexibility in operation

Connections

Contact Closure 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
Inputs Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
Outputs Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
Ethernet 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
