Teradek RT MOTR.S
by Teradek
Availability:
7-10 days delivery
SKU
TRD-15-0050
Compact Lens-Control Motor
Includes 0.8 MOD Lens Gear
€1,931.00
€1,544.80
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek RT MOTR.S Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket

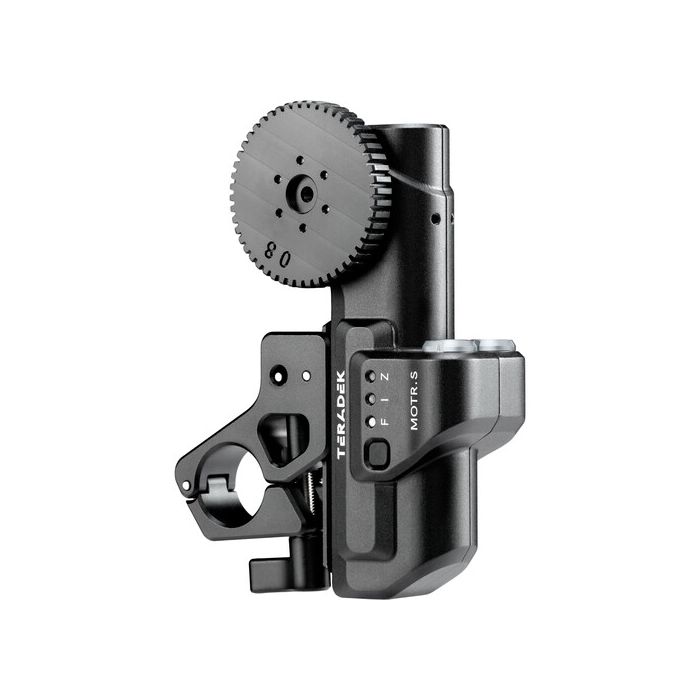

esigned to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
MOTR.S Upgrades
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
| General | |
| Gear Pitch | 0.8 MOD |
| Maximum Torque | 0.95 nm (Peak) |
|
0.3 nm (continuous)
|
|
| Maximum Speed |
297 teeth per second
|
| Connectors | 2 x 0B 4-Pin |
| Power | |
| Power Source | Plug-In Power |
| DC Input Power | 7 to 32 VDC |
| Operating Current | 1 A (Standby) |
| 2 A (Maximum) | |
| Environmental | |
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Physical | |
| Mounting |
1x 15mm Rod Clamp
|
|
1x 19mm Rod Clamp
|
|
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions |
4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
|
| Weight | 6.5 oz / 184 g |
