Teradek RT MOTR.S MAX
by Teradek
Availability:
7-10 days delivery
SKU
TRD-15-0053
Lens-Control Motor
Includes 0.8 MOD Lens Gear
€2,414.00
€1,931.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek RT MOTR.S Max Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket

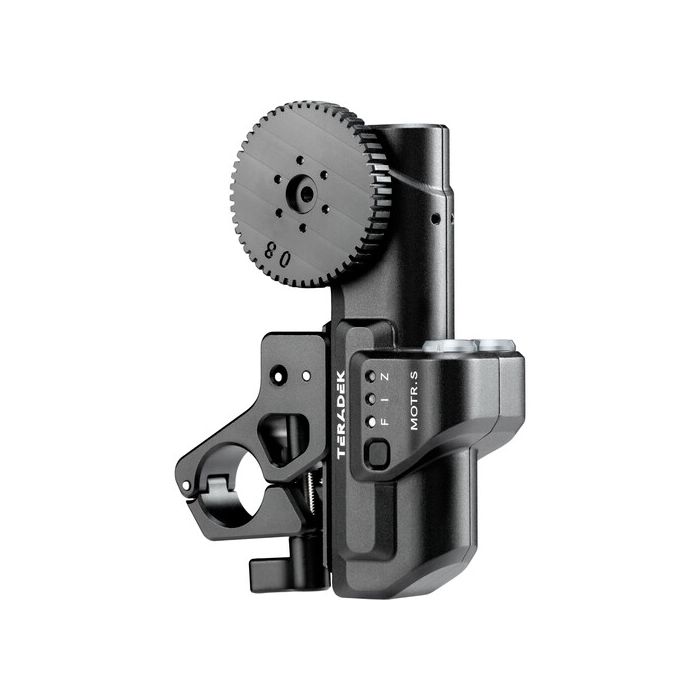

The Teradek RT MOTR.S Max Lens Motor features a similar design to its MOTR.S sibling but with increased torque and size for heavier-duty lens operations. Adjust focus, iris, or zoom functions with the MOTR.S Max and its 1.2nm maximum torque and maximum speed of 275 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage of up to 32V.
MOTR.S Max Upgrades
- Lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next-gen circuit boards
- New 15/19mm rod clamp with better-located handle
- 1.2nm maximum torque, 275 teeth per second
| General | |
| Gear Standard | 0.8 MOD |
| Max Torque | 1.2 nm (Max) |
|
0.8 nm (Continuous)
|
|
| Speed |
275 Teeth per Second
|
| Connectors | 2 x 0B 4-Pin |
| Power | |
| Power Source | Plug-In Power |
| DC Input Power | 7 to 32 VDC |
| Operating Current | 1 A (Standby) |
| 3 A (Maximum) | |
| Environmental | |
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Physical | |
| Mounting |
1x 15mm Rod Clamp
|
|
1x 19mm Rod Clamp
|
|
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions |
4.6 x 2.3 x 1.2" / 117.5 x 59 x 31 mm
|
| Weight | 7.8 oz / 222 g |
