Teradek RT MDR.X 3-Axis Lens Control Receiver w/ Bluetooth
by Teradek- For All RT Motors & Controllers
- Control Focus/Iris/Zoom by 2.4 GHz Wi-Fi
- Full Control with RED DSMC2 Cameras
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth

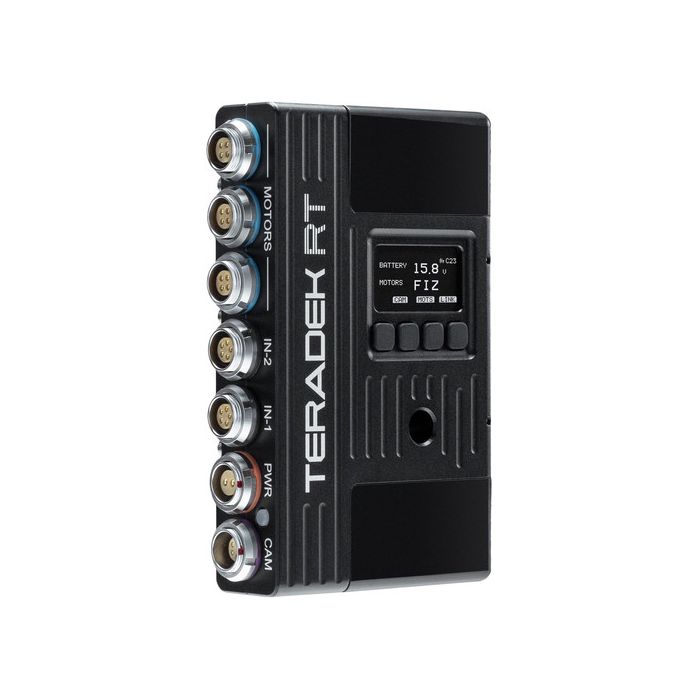

Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.
An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 oz and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.
Multiple Inputs/Outputs
- Three motor ports for focus, iris, and zoom
- Two auxiliary inputs for wired control (via Teradek RT thumbwheel/zoom rocker)
- One cam output for RED DSMC2 camera control
Camera Control
Run/Stop control, including but not limited to:
- ARRI ALEXA, ALEXA Mini, AMIRA, etc.
- Blackmagic
- Canon C100, C300 (MkII+), C500
- Panasonic VariCam
- Phantom
- RED DSMC2, DSMC, ONE
- Sony F5, F55, FS7 (MkII+)
RED DSMC/DSMC2 camera control:
- EF/AF focus/iris
- Shutter
- ISO
- Button features 2x magnification, edge, and focus assist
Compact and Lightweight
The unit's small form factor makes it perfect for all camera setups, especially those on gimbals, handheld rigs, cranes, drones, and other movement rigs.
OLED Display
Each receiver includes an on-unit OLED display with push buttons for configuring motor axes, as well as displaying status readouts including wireless channels, battery voltage, and more.
Wireless Range
RT FHSS
- Line-of-sight: Up to 5000' (in USA/FCC mode)
- Indoors: Up to 492'
Bluetooth 5
- Theoretical maximum range of 800' (actual range will vary)
Teradek RT App
Manage, update, and configure every piece of your Teradek RT system via Bluetooth 5 with the Teradek RT app for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware, and much more from the convenience of your smartphone or tablet.
Teradek Latitude-X Specs
General
|
Compatibility |
Teradek RT FIZ Controllers |
Display
|
Panel Type |
OLED |
|
Size |
Not Specified by Manufacturer |
|
USB I/O |
1 x Mini-USB Integrated Male Input |
Power
|
Power Source |
Battery (Not Included) |
|
DC Input Power |
7 to 17 VDC |
Environmental
|
Operating Temperature |
-4 to 122°F / -20 to 50°C |
|
Storage Temperature |
-40 to 185°F / -40 to 85°C |
Physical
|
Mounting |
Side: 1 x Through Hole |
|
Material of Construction |
Sluminum Slloy |
|
Cable Length |
Not Specified by Manufacturer |
|
Dimensions |
3.7 x 2.3 x 0.7" / 9.4 x 5.8 x 1.8 cm |
|
Weight |
4.8 oz / 136 g |
Packaging Info
|
Package Weight |
0.545 lb |
|
Box Dimensions (LxWxH) |
5.9 x 4.2 x 2.2" |
