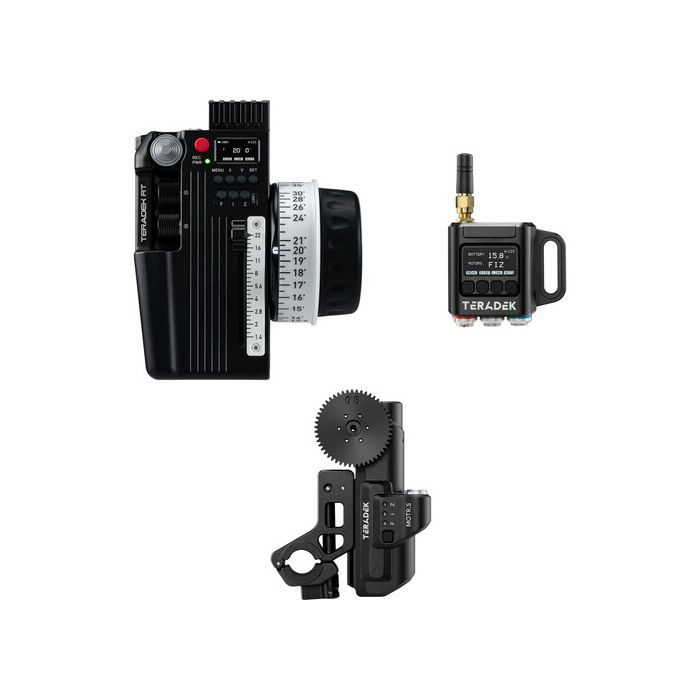

Teradek RT - FIZ Kit (CTRL.3, MDR.S, MOTR.S)
by TeradekCTRL.3 Wireless Lens Controller
MOTR.S Lens Motor
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
- 5 x Teradek White Disc for CTRL.1/CTRL.3 Controller
- USB Type-A to Micro-USB Type-B Cable (3')
- 5-Pin to Micro-USB SmallHD Monitor Interface Cable (1.3')
- Pre-Marked Focus Ring (0.25m Minimum Focus)
- Pre-Marked Focus Ring (0.5m Minimum Focus)
- Pre-Marked Focus Ring (1m Minimum Focus)
- Pre-Marked Focus Ring (2m Minimum Focus)
- Pre-Marked Focus Ring (3m Minimum Focus)
- Pre-Marked Iris Ring (1 - 32)
- Iris Strip Slider 0 (1 - 22)
- Iris Strip Slider 10 (1.4 - 22)
- Iris Strip Slider 20 (2 - 22)
- Iris Strip Slider 30 (2.8 - 22)
- Large Teradek Case with RT Motion 3 Motor
- Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
- USB 2.0 Type-A to Type-C Male Cable (3.3')
- Teradek RT Power 3-Pin D-Tap Cable
- Straight 2.4 GHz Wi-Fi Antenna
- MDR.S Bracket
- Black Screw Socket Head (M2 x 6mm)
- Screw Socket Cap (1/4"-20 x 3/8"-16)
- Teradek RT MOTR.S Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
- Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
- Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
- Teradek RED Run/Stop Cable for MDR.X Receiver (16")
- Teradek LANC Run/Stop Cable for MDR.X Receiver (16")
- Teradek 5-Pin to Micro-USB 2.0 Type-B Monitor Cable for SmallHD Overlays (16")
- Teradek RT SmallHD Monitor Interface Cable (24")
- Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
- Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
- Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")
- Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
- Teradek RT Controller Neck Strap
- Teradek RT Protective Case for 3-Motor Lens Control Kit
- NPI RED KOMODO/RAPTOR CTRL 9-Pin EXT to 6-Pin (CAM Port)
- LP-E6 1600mAh Li-Ion Battery
- LP-E6 Charger
Teradek RT MDR.S MOTR.S Overview
Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit from Teradek, featuring the upgraded MOTR.S lens motor, CTRL.3 wireless lens controller, an MDR.S 3-channel Bluetooth wireless receiver, and the compact MOTR.S.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments. The MDR.S has a 5000' line-of-sight range and features Bluetooth and 2.4 GHz Wi-Fi connectivity. Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders. The kit also includes numerous cables, a battery, a charger, and a large carry case. Read more below about the items included in this kit.
Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000' and an indoor wireless range of 500'. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.
The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It's powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilize the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3' USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.
- Run/stop control for RED (EPIC, SCARLET, WEAPON, RAVEN, etc.), ARRI (ALEXA, AMIRA, etc.), Phantom, Sony F55, and
- LANC cameras (Blackmagic, Canon C100/300/500, Sony FS7, etc.)
- Knob, slider, zoom x/y, and rollers (a + b)
- Lens data overlays on SmallHD monitors running OS3 allow you to get follow focus information directly on your monitor
- including focal distance, focal length, iris, and zoom
- MDR.X, MDR.ACI, and RT iOS app Bluetooth compatibility
- Manage, update, and configure your Teradek RT system with the Teradek RT app for iOS
- Four 1/4"-20 threads, an ARRI rosette with M6 thread, and lanyard mount for mounting
- Slot for a Canon LP-E6 battery (6.2 to 8.4V)
- 5-pin locking connector for wired mode
- USB port provides monitor interface and wired control
- Pre-marked rings come in imperial units
- FCC, IC, and CE certifications
Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
Features at a Glance
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
Teradek RT MOTR.S Lens Motor
Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
MOTR.S Upgrades
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
System | |
Number of Channels | 3 |
Maximum Range |
Outdoor: 5000' / 1524 m
|
Indoor: 500' / 152.4 m
|
|
Wireless Frequency | 2.4 GHz |
Receiver / Motor | |
Bluetooth | No |
Included Drive Gear | No |
Included Motors |
Not Specified by Manufacturer
|
Maximum Peak Torque |
Not Specified by Manufacturer
|
Operating Temperature |
-4 to 122°F / -20 to 50°C
|
Storage Temperature |
-40 to 185°F / -40 to 85°C
|
Transmitter / Controller
|
|
Transmission Delay | 2 ms |
Transmitter I/O | 1 x LEMO 5-Pin |
1 x USB-A | |
Camera Trigger |
Not Specified by Manufacturer
|
Battery Type | LP-E6 |
Material of Construction | Aluminum |
Dimensions |
5.1 x 3.3 x 6.2" / 12.95 x 8.38 x 15.75 cm
|
Weight | 1.66 lb / 754 g |
Packaging Info | |
Package Weight | 7.505 lb |
Box Dimensions (LxWxH) |
13.7 x 10.4 x 7.2"
|
Teradek MDR.S Compact 3-Channel Lens Control Receiver With Bluetooth Specs
|
|
General | |
Compatibility | Teradek RT |
Bluetooth Range | 5000' / 1524m |
Display | |
Panel Type | OLED |
Display Size |
Not Specified by Manufacturer
|
Touchscreen | No |
Inputs / Outputs | |
USB I/O |
1 x USB-C Female Input
|
Video I/O |
1x Mini Hirose 6-Pin Input
|
1x Mini-DIN 4-Pin Input
|
|
Power | |
Power Source |
Proprietary Interface
|
DC Input Power | 5 to 28 VDC |
Physical | |
Mounting | 1x Rail |
Color | Black |
Dimensions |
2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm
|
Weight | 2.4 oz / 68 g |
Packaging Info | |
Package Weight | 0.545 lb |
Box Dimensions (LxWxH) | 5.9 x 4.25 x 2.3" |
Teradek RT MOTR.S Lens Motor Specs
|
|
General | |
Gear Pitch | 0.8 MOD |
Maximum Torque | 0.95 nm (Peak) |
0.3 nm (continuous)
|
|
Maximum Speed |
297 teeth per second
|
Connectors | 2 x 0B 4-Pin |
Power | |
Power Source | Plug-In Power |
DC Input Power | 7 to 32 VDC |
Operating Current | 1 A (Standby) |
2 A (Maximum) | |
Environmental | |
Operating Temperature |
32 to 82°F / 0 to 50°C
|
Physical | |
Mounting |
1x 15mm Rod Clamp
|
1x 19mm Rod Clamp
|
|
Color | Black |
Material of Construction | Aluminum |
Dimensions |
4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
|
Weight | 6.5 oz / 184 g |
Packaging Info | |
Package Weight | 0.57 lb |
Box Dimensions (LxWxH) | 6.4 x 4.1 x 3" |
Teradek 3-Pin To 2-Pin Power Cable For MDR.S Receiver (15.7") Specs
|
|
General | |
Compatibility |
Teradek MDR.S Receiver
|
Inputs / Outputs | |
Connector 1 | 1x 3-Pin Male |
Connector 2 | 1x 2-Pin Male |
Physical | |
Cable Length | 15.7" / 40 cm |
Packaging Info | |
Package Weight | 0.08 lb |
Box Dimensions (LxWxH) | 5.1 x 3 x 0.75" |
Teradek 3-Pin To 3-Pin R/S Power Cable For MDR.S Receiver (15.7") Specs
|
|
General | |
Compatibility |
Teradek MDR.S Receiver
|
Inputs / Outputs | |
Connector 1 | 1x 3-Pin Male |
Connector 2 |
1x 3-Pin with ARRI Run/Stop Male
|
Physical | |
Cable Length | 15.7" / 40 cm |
Packaging Info | |
Package Weight | 0.1 lb |
Box Dimensions (LxWxH) |
5.75 x 5.05 x 0.6"
|
Teradek RED Run/Stop Cable For MDR.X Receiver (16") Specs
|
|
Physical | |
Connector 1 | 6-Pin Push-Pull |
Connector 2 |
Not Specified by Manufacturer
|
Compatible Camera | RED Camera |
Length | 16" / 40 cm |
Packaging Info | |
Package Weight | 0.05 lb |
Box Dimensions (LxWxH) | 3.6 x 3.5 x 0.45" |
Teradek LANC Run/Stop Cable For MDR.X Receiver (16") Specs
|
|
Physical | |
Connector 1 | 6-Pin Push-Pull |
Connector 2 |
Not Specified by Manufacturer
|
Compatible Camera |
LANC-Equipped Camera
|
Length | 16" / 40 cm |
Packaging Info | |
Package Weight | 0.05 lb |
Box Dimensions (LxWxH) |
4.9 x 3.85 x 0.85"
|
Teradek 5-Pin To Micro-USB 2.0 Type-B Monitor Cable For SmallHD Overlays (16") Specs
|
|
Physical | |
Connector 1 |
5-Pin Circular Locking Connector
|
Connector 2 |
Micro-USB 2.0 Type-B
|
Length | 16" / 40 cm |
Weight | 0.5 oz / 14.2 g |
Packaging Info | |
Package Weight | 0.07 lb |
Box Dimensions (LxWxH) |
7.75 x 4.85 x 0.6"
|
Teradek RT SmallHD Monitor Interface Cable (24") Specs
|
|
Transmitter / Controller
|
|
Connectors |
Monitor End: 5-Pin (Straight)
|
Teradek RT End: 5-Pin (Right-Angle)
|
|
Length | 24" / 0.6 m |
Packaging Info | |
Package Weight | 0.085 lb |
Box Dimensions (LxWxH) | 1.5 x 1.5 x 0.5" |
Teradek 4-Pin Straight-Angle Motor Cable For RT MOTR.X Brushless Lens Motor (8") Specs
|
|
Transmitter / Controller
|
|
Compatibility |
RT MOTR.X Brushless Lens Motor
|
Length | 7.8" / 20 cm |
Connector |
4-Pin Straight Angle
|
Weight |
Not Specified by Manufacturer
|
Packaging Info | |
Package Weight | 0.065 lb |
Box Dimensions (LxWxH) |
4.95 x 2.45 x 0.85"
|
Teradek 4-Pin Straight-Angle Motor Cable For RT MOTR.X Brushless Lens Motor (16") Specs
|
|
Transmitter / Controller
|
|
Compatibility |
RT MOTR.X Brushless Lens Motor
|
Length | 15.7" / 40 cm |
Connector |
4-Pin Straight Angle
|
Weight |
Not Specified by Manufacturer
|
Packaging Info | |
Package Weight | 0.08 lb |
Box Dimensions (LxWxH) |
1.5 x 1.45 x 0.45"
|
Teradek 4-Pin Straight-Angle Motor Cable For RT MOTR.X Brushless Lens Motor (24") Specs
|
|
Transmitter / Controller
|
|
Compatibility |
RT MOTR.X Brushless Lens Motor
|
Length | 23.6" / 60 cm |
Connector |
4-Pin Straight Angle
|
Weight |
Not Specified by Manufacturer
|
Packaging Info | |
Package Weight | 0.07 lb |
Box Dimensions (LxWxH) | 4.45 x 3.8 x 0.5" |
Teradek Monitor Bracket For CTRL.1/CTRL.3 Hand Controllers Specs
|
|
Packaging Info | |
Package Weight | 0.46 lb |
Box Dimensions (LxWxH) | 6 x 4.2 x 2.1" |
Teradek RT Controller Neck Strap Specs
|
|
Dimensions |
Not specified by manufacturer
|
Packaging Info | |
Package Weight | 0.2 lb |
Box Dimensions (LxWxH) | 5.5 x 1.5 x 1.1" |
Teradek RT Protective Case For 3-Motor Lens Control Kit Specs
|
|
Compatibility |
RT Wireless Lens Control Kit
|
Material |
Polypropylene Copolymer Resin
|
Closure Method |
Trigger-Release Latch System
|
Carry/Transport Options | Handle |
Valves |
Automatic Ambient Pressure Equalization Valve
|
Waterproof | Yes |
Dimensions |
Not Specified by Manufacturer
|
Weight |
Not Specified by Manufacturer
|
Packaging Info | |
Package Weight | 15.18 lb |
Box Dimensions (LxWxH) |
20.1 x 15.7 x 8.2"
|
