Teradek Ranger Micro 2500 3G-SDI/HDMI - Wireless TX/RX Set V-Mount

by Teradek
Availability: 7-10 days delivery
SKU
TRD-10-2540-V

Transmitter/V-Mount Receiver Set
Supports 4.9 to 6.4 GHz Frequency Bands

€12,487.50 €9,990.00
  • Installment Payment

 You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
  • Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
  • International Purchasing

 The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

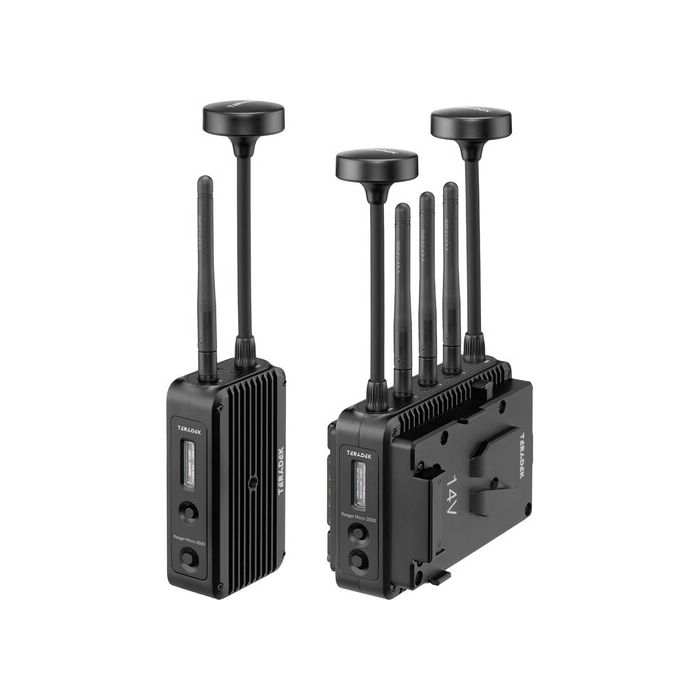

main product photo

Package includes

  • Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter
  • 2 x N-Type Antenna
  • Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver (V-Mount)
  • 5 x 2 dBi Antenna
  • V-Mount Battery Plate

Add a full wireless transmission kit to your rig to transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 1080p60 video over HDMI or 3G-SDI and transmit up to 2500' away to the receiver, which can output to HDMI or 3G-SDI.

The set supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption that protects your video from prying eyes. You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration. Each unit is powered using a 2-pin DC input.

Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 2500' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware


State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.


Ranger Compatibility


Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.


Zero Delay


When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.


Configure Ranger from PC or Phone

  • Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
  • Bluetooth 5 LE connection support
  • Pair transmitters and receivers with the touch of a button
  • Measure and analyze the frequency and amplitude of a signal
  • View live channel strength for licensed/unlicensed bands
  • Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range


With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.


Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver (V-Mount)

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 2500' line of sight. It also features five external antennas.

When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption that protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware


State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.


Ranger Compatibility


Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.
Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.


Configure Ranger from PC or Phone

  • Install the Launchpad app on your macOS or Windows computer, or on an iOS/Android phone
  • Bluetooth 5 LE connection support
  • Pair transmitters and receivers with the touch of a button
  • Measure and analyze the frequency and amplitude of a signal
  • View live channel strength for licensed/unlicensed bands
  • Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range


With the number of wireless devices on the rise and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
Video I/O
1 x HDMI 2.0 Input

1 x BNC (3G-SDI) Input

1 x BNC (3G-SDI) Loop Output
Embedded Audio
HDMI: 2-Channel
  SDI: 2-Channel
Power Consumption 9 W
Mounting
1 x 1/4"-20 Female
