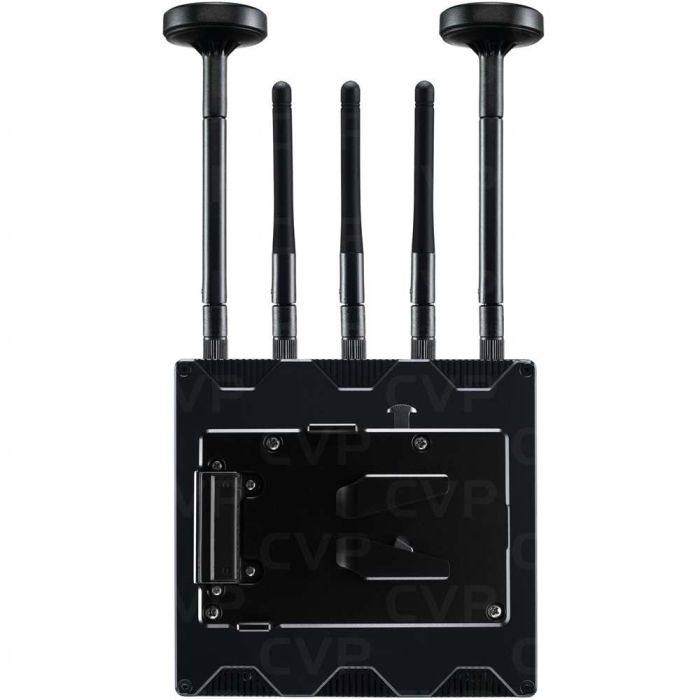

Teradek Ranger 4K 12G-SDI/HDMI - Wireless RX V-Mount
by Teradek- 2 x 12G-SDI Outputs; HDMI Output
- Uncompressed 4K60 HDR up to 5000'
- < 1ms Delay
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Ranger 4K Wireless Receiver (V-Mount)
- 1/4"-20 Light Stand Adapter
- USB Type-A to Type-B Cable (3')
- Ultra-Thin HDMI Type-A to Type-A Cable (18")
- 12G-SDI Cable (18")
- PSU 2-Pin to 30W AC Adapter (6')
- 3 x Antenna 2 dBi Wi-Fi 2.4/5.8 GHz
- 2 x Antenna H Mushroom
The Teradek Ranger 4K Wireless Receiver accepts uncompressed 4K60 HDR video from up to 5000' line of sight with only < 1ms delay. It features a wide operating range from 4.9 to 6.0 GHz and is designed to provide live productions with a combination of video quality and wireless integrity.
The Ranger 4K receiver has two 12G-SDI (SMPTE 2082-1) outputs and one HDMI output.
|
RANGER 4K RX |
|
|
|
|
|
AUDIO |
|
|
Audio Compression |
48kHz 24-bit PCM |
|
Audio Input |
N/A |
|
Audio Output |
Embedded SDI/HDMI Audio Input (2 channel) |
|
PHYSICAL ATTRIBUTES |
|
|
Dimensions |
5.5” x 5.3” x 1.2” (140 x 133 x 30mm) |
|
Weight |
23.2oz (658g) |
|
Construction |
Milled aluminium (chassis), regulation-compliant PCB |
|
Configuration Interface |
OSD Screen with Menu Joystick Navigation |
|
Switches |
On/Off Switch |
|
Desktop App |
Launchpad application for OSX & Windows |
|
Mobile App |
Launchpad app (iOS and Android) configuration via Bluetooth |
|
USB Interface |
Upgrade via Micro-USB |
|
Bluetooth |
Bluetooth 5 LE |
|
WIRELESS |
|
|
Wireless Non-DFS Frequencies |
5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz |
|
DFS Frequencies |
5.270 ~ 5.670 GHz |
|
Licensed Frequencies |
4.9 ~ 5.1GHz and 5.85 ~ 6.0 GHz |
|
RF Channel Selection |
Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) |
|
Encryption |
AES-256, RSA-1024 key exchange |
|
RF power |
18 dBm |
|
Antennas |
3x Vertical 2dbi antennas |
|
Range |
Up to 5000 ft line of sight (using Panel Antenna) |
|
Multicast |
Can connect one transmitter to up to 6 receivers |
|
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
|
POWER |
|
|
Power Input |
2-Pin Circular locking connector 6-28 VDC |
|
Battery |
Gold or V mount battery plate |
|
Nominal Power Consumption |
15 Watts |
|
Operating Temperature |
0~40 deg-C |
|
GENERAL |
|
|
Mountability |
Multiple mounting options with M3, 3/8” and 1/4-20” holes |
