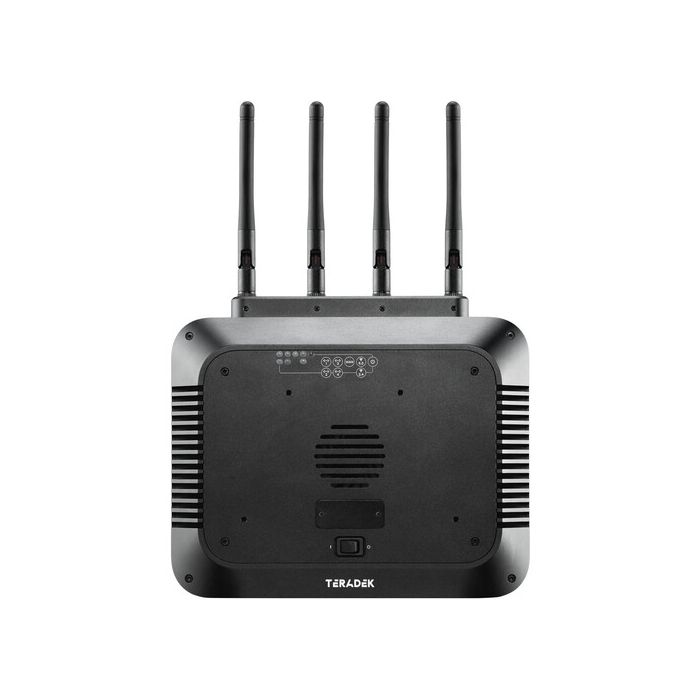

Teradek Link AX Wireless Access Point Router 5 Port
by TeradekExpand your production networking capabilities
Wi-Fi monitoring with multiple Serv devices
20 independent viewers using VUER HDR app
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1 x Link AX Wireless Access Point Router 5 Port
- 1 x Lightstand Adapter 3/8in
- 1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable (182.88cm)
Overview
Link AX expands your production networking capabilities with a ruggedized, set-ready aluminum chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras; simultaneous camera-control over multiple cameras.
Read the Link AX blog for an in-depth breakdown of real-world workflows.
Built for Production
Wi-Fi monitoring with multiple Serv devices*
20 independent viewers using VUER HDR app on mobile devices*
Add an internet connection to enable remote monitoring or camera-to-cloud workflows
Simultaneous control of multiple cameras over Wi-Fi
Rugged Design
Robust Aluminum Chassis
Gold-Mount and V-Mount Battery Plate Options
⅜” and ¼”-20 Mounting Points
5 customizable ethernet ports
USB-A for cellular modems like Node II with Teradek Data
*Serv Micro, Serv 4K, or Serv Pro required. Sold separately.
| Dimensions | 7.3” W x 5.7” D x 2” H [185mm x 145mm x 51mm] |
| Weight | Without battery plate: 37oz (1046g) |
| With battery plate: 38.4oz (1090g) | |
| Construction | Milled Aluminum |
| Mountability | 2x 1/4”-20 threaded holes, 1x 3/4”-16 threaded hole |
| Interfaces | |
| Configuration Interfaces | Feature rich web UI for configuration nd control |
| Switches | On/Off, Reset, and Reboot switches |
| Status Leds | Multiple LEDs for device, wireless, and network statuses |
| Network | |
| Ethernet | 4x 1Gbps Ethernet Ports |
| 1x 2.5Gbps Ethernet Port | |
| Usb | USB 2.0 |
| Wifi | 2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain |
| 2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain | |
| Frequency Range 2.412~2.472GHz, 5.180~5.825GHz | |
| Encryption | 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
| Power | |
| Power Input | 2pin locking connector: 12-28V |
| Nominal Power Consumption | 17.5W (Max) |
| Poe | Supports IEEE 802.3at 48~56V |
| Battery Plates | Integrated Gold or V mount battery plate (optional) |
| Environmental | |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -40ºC to 90ºC |
| Operating Humidity | 5% to 95% |
| Storage Humidity | Max. 90% |
