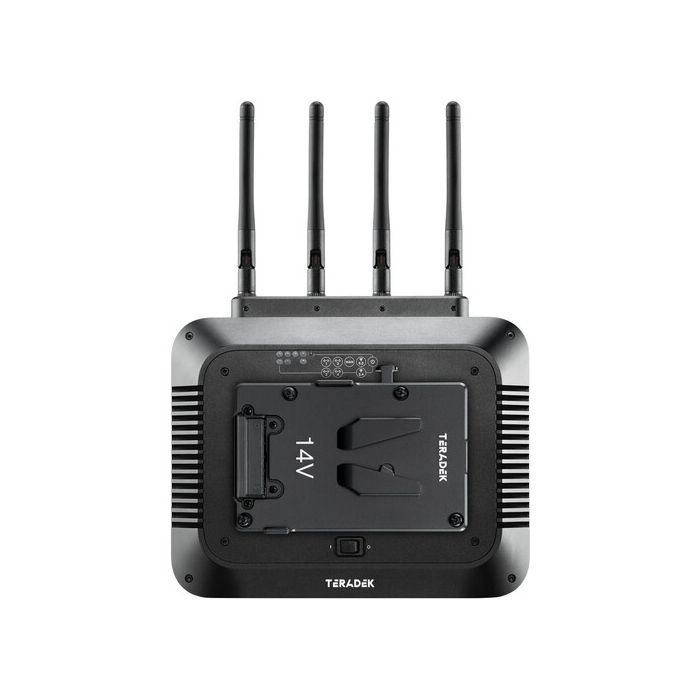

Teradek Link AX (V-Mount) Wireless Access Point Router 5 Port
by TeradekProduction-Ready Wi-Fi 6 Router
Includes V-Mount Battery Plate
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Link AX Wi-Fi Router/Access Point (V-Mount)
- 3/8"-16 Light Stand Adapter
- 2-Pin to 30W AC Adapter
- Power Cable (6')
- V-Mount Battery Plate
Add routing and Wi-Fi connectivity, collaboration, and monitoring to your streaming production with this Link AX Wi-Fi Router/Access Point from Teradek. This unit features five configurable Ethernet ports and Wi-Fi 6 802.11ax connectivity to connect your IP-enabled cameras, video switchers, and streaming video devices with collaborators and cloud services. The unit allows numerous units to connect via Wi-Fi or wireless connections for streaming and monitoring using multiple Teradek Serv 4K or Serv Micro units. Its USB-A port allows you to utilize external modems such as the Node II for cellular data streaming options.
The Teradek VUER HDR app for iOS and Android devices provides control over the streams, and it allows up to 20 independent viewers on the system to preview feeds and control multiple cameras. Its rugged aluminum chassis is designed for use in various environments, and it features 1/4"-20 and 3/8"-16 mounting threads. It is powered using the included power supply or via the included V-mount battery plate.
Key Features
- Wi-Fi monitoring with multiple Serv devices
- 20 independent viewers using VUER HDR app on mobile devices
- Add an Internet connection to enable remote monitoring or camera-to-cloud workflows
- Simultaneous control of multiple cameras over Wi-Fi
- Durable aluminum chassis
- Powered using included power supply or via the included V-mount battery plate
- 3/8"-16 and 1/4"-20 mounting threads
- Five customizable Ethernet ports
- USB-A for cellular modems such as Node II with Teradek Data
| Inputs / Outputs | |
| USB I/O |
1 x USB-A Female Input/Output
|
| Video I/O |
5x RJ45 Input/Output
|
| Wireless | |
| Wireless |
Wi-Fi 6 (802.11ax)
|
| *Built-In | |
| Wi-Fi |
Wi-Fi 6 (802.11ax)
|
| Mobile App Compatible |
Yes, Required: Android & iOS
|
|
App Name: VUER
|
|
|
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
|
|
| Power | |
| Power Source |
AC Adapter with Power Brick (Included), Battery (Not Included)
|
| Battery Type | 1x V-Mount |
| DC Input Power | 12 VDC |
| Power Consumption | 30 W |
| Physical | |
| Mounting |
1x 3/8"-16 Thread
|
|
1x 1/4"-20 Thread
|
|
| Material of Construction | Aluminum |
| Cable Length | 6" / 15.2 cm |
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
