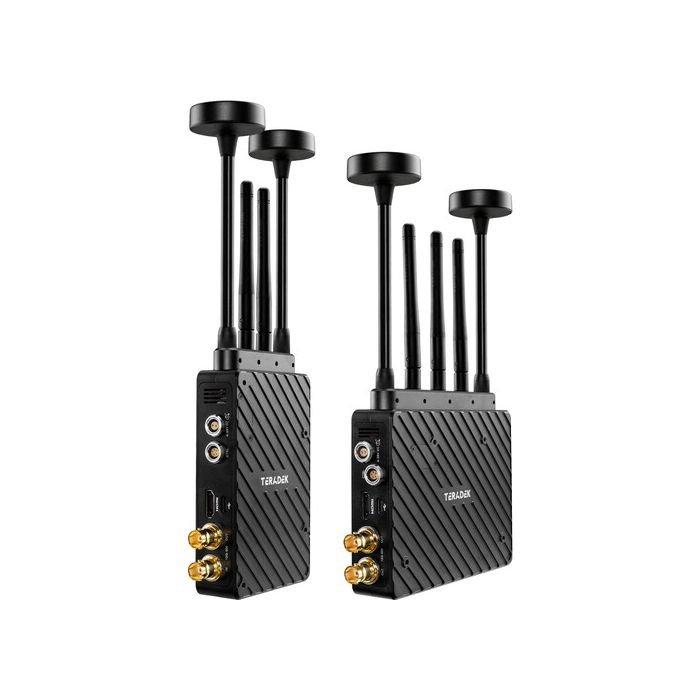

Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set V-Mount
by TeradekSupports New 6 GHz Frequency Band
HDMI and 12G-SDI Inputs and Outputs
Transmit up to 4K60 Video
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 6/4K TX/RX Units
AES-256 Encryption, 7 x Antennas
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
- Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (V-Mount)
- Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
- Antenna Array
- 2 x 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 2 x HDMI Type A Cable (18")
- 2 x BNC Cable (18")
- 2-Pin Cable for ALEXA (18")
- 18W AC Adapter with Cable (6')
- 2 x Bolt Battery Cover (Front)
- 2 x Bolt Battery Cover (Rear)
- 5 x RP-SMA Cable (4")
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Screw Set
- Allen Wrench
- Wooden Camera Monitor Mount
- Carry Case
- 5 x Standard Antenna
- 4 x Mushroom Antenna
Transmit and receive lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power each unit with a professional V-mount battery.
The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The Deluxe kit includes a carry case as well as multiple cables and mounting options.
| Antenna Ports | Transmitter: 4 x RP-SMA Female |
| Receiver: 5 x RP-SMA Female | |
| Video I/O | Transmitter: 1 x HDMI 2.0 Input |
| Transmitter: 1 x BNC (12G-SDI) Input | |
| Transmitter: 1 x BNC (12G-SDI) Loop Output | |
| Receiver: 1 x HDMI 2.0 Output | |
| Receiver: 1 x BNC (12G-SDI) Output | |
| Embedded Audio | HDMI: 2-Channel |
| SDI: 2-Channel | |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input |
| Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output | |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 5000' / 1524 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 20 W |
| Receiver: 18 W | |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
| Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm | |
| Weight | Transmitter: 12.1 oz / 344 g, Excluding Battery Plate |
| Receiver: 15.2 oz / 430 g, Excluding Battery Plate | |
| Packaging Info | |
| Package Weight | 23.495 lb |
| Box Dimensions (LxWxH) | 24.2 x 19.9 x 9.8" |
