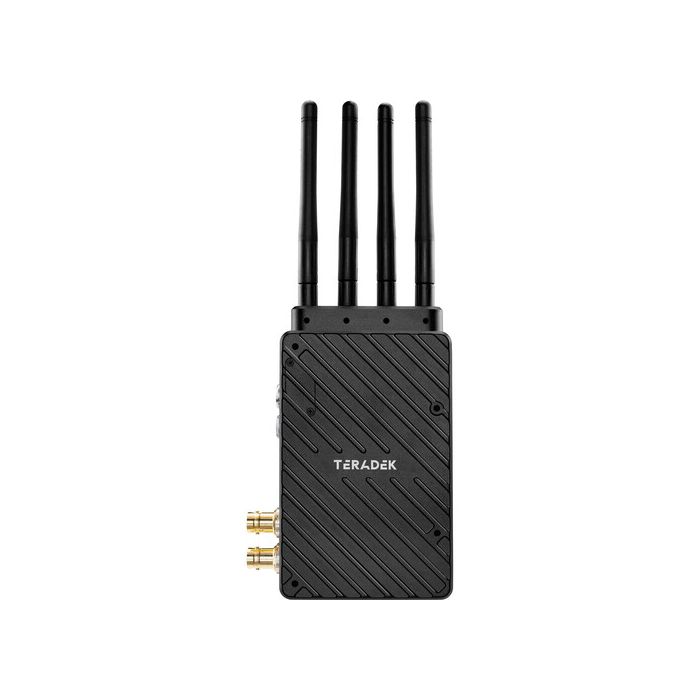

Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Tx
by Teradek12G-SDI and HDMI Input, 12G-SDI Output
Smaller, Lighter, 50% Quieter
5-Pin USB Output for Camera Control
Transmit to up to 6 x RXs
Up to DCI 4K60 10-Bit 4:2:2 HDR Support
Compatible with all Bolt 4K 5G Devices
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Tx
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to USB Type-C Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 4 x Antenna
Transmit lossless HD video up to 1500' with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input video over HDMI or 12G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to 1500' line of sight. It features a bright OLED display, a 12G-SDI loop output, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input and output 12G-SDI and HDMI video and transmit up to 4K30 video; 12G-SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | 4 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Input |
| 1 x BNC (12G-SDI) Input | |
| 1 x BNC (12G-SDI) Loop Output | |
| Embedded Audio | HDMI: 2-Channel |
| SDI | |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C Input |
| 1 x LEMO 5-Pin 2.0 Output | |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | 20 W |
| Mounting | 1 x 1/4"-20 Female |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
| Weight | 12.1 oz / 344 g |
| Packaging Info | |
| Package Weight | 3.68 lb |
