Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless TX/RX
by Teradek12G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Smaller, Lighter, 50% Quieter
Supports up to 4K30 Resolution
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Bolt 6 XT 1500 12G-SDI/HDMI Transmitter
- Bolt 6 XT 1500 12G-SDI/HDMI Receiver
- 2 x 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Type-C Male Cable (39")
- 2 x HDMI Type A Male Cable (18")
- 2 x BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 9 x Antenna
- Light Stand Adapter
- Shoe Adapter
- Carry Case

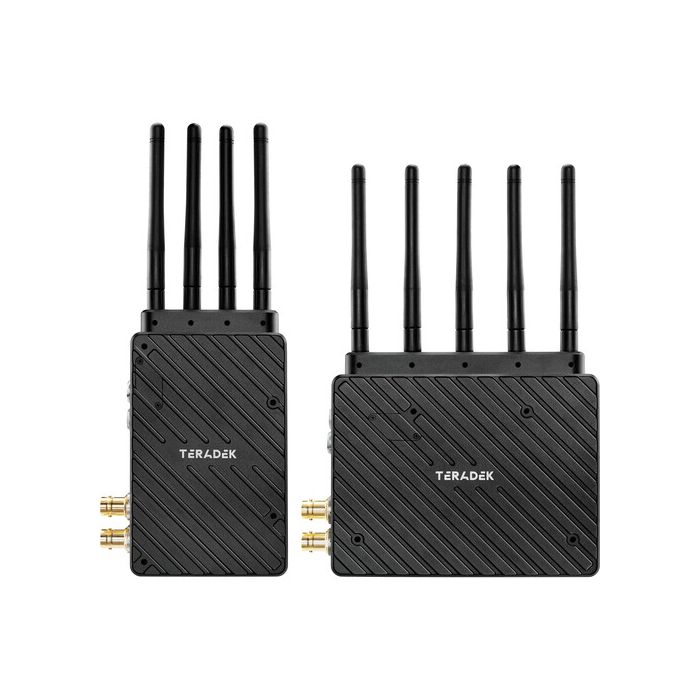

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support.
Other new features include a smaller, lighter design, improved long-range mode, an SDI eye pattern tool, and 50% quieter performance than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A case is included to store and transport the kit.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Transmitter inputs via 12G-SDI and HDMI, transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long-range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | Transmitter: 4 x RP-SMA Female |
| Receiver: 5 x RP-SMA Female | |
| Video I/O | Transmitter: 1 x HDMI 2.0 Input |
| Transmitter: 1 x BNC (12G-SDI) Input | |
| Transmitter: 1 x BNC (12G-SDI) Loop Output | |
| Receiver: 1 x HDMI 2.0 Output | |
| Receiver: 1 x BNC (12G-SDI) Output | |
| Embedded Audio | HDMI: 2-Channel |
| SDI | |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input |
| Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output | |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 60 | |
| 480i: 59.94 | |
| SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) | |
| DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 20 W |
| Receiver: 18 W | |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
| Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm | |
| Weight | Transmitter: 12.1 oz / 344 g |
| Receiver: 15.2 oz / 430 g | |
| Packaging Info | |
| Package Weight | 8.79 lb |
| Box Dimensions (LxWxH) | 14.2 x 11 x 7.2" |
