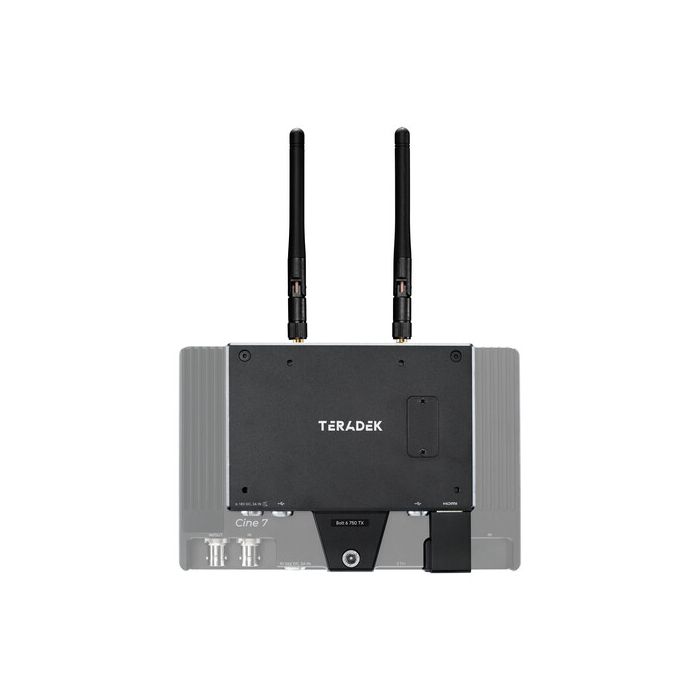

Teradek Bolt 6 Monitor Module 750 TX
by TeradekSupports New 6 GHz Frequency Band
Wirelessly Send Video & Camera Control
Mounts onto Cine 7, Indie 7, 702 Touch
HDMI Input up to 4K30, 10-Bit HDR Video
Zero Delay, SmallHD PageOS 5 Software
Simultaneously Send to up to 6 Receivers
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Bolt 6 Monitor Module 750 TX
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 750' away with the Bolt 6 Monitor Module 750 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor and can wirelessly transmit up to 4K30 HDR video to any Bolt 4K receiver. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with optional camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay. The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.
Key Features
Transmits video on the newly available 6 GHz wireless frequency band
Transmit to up to six Bolt 4K or Bolt 6 series receivers
Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
Compatible with ARRI cameras with separate license and will also be available for the RED KOMODO and Sony VENICE with future license availability
Wirelessly transmit up to 4K30 video
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Can coexist with Wi-Fi and 5 GHz cordless phones
| Antenna Ports | 2 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies |
| US: 5.94 to 6.42 GHz | |
| US: 5.19 to 5.23 GHz | |
| US: 5.75 to 5.79 GHz | |
| DFS Frequencies | |
| US: 5.27 to 5.67 GHz | |
| Latency | None |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB) |
| UHD 4K: 30/29.97/25/24/23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 480p: 60/59.94 | |
| 576i: 50 | |
| 480i: 59.94 | |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 18 VDC |
| Power Consumption | 7 W |
| Environmental | |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Weight | 7.3 oz / 206 g |
| Packaging Info | |
| Package Weight | 2.955 lb |
| Box Dimensions (LxWxH) | 16.5 x 8.4 x 3.6" |
