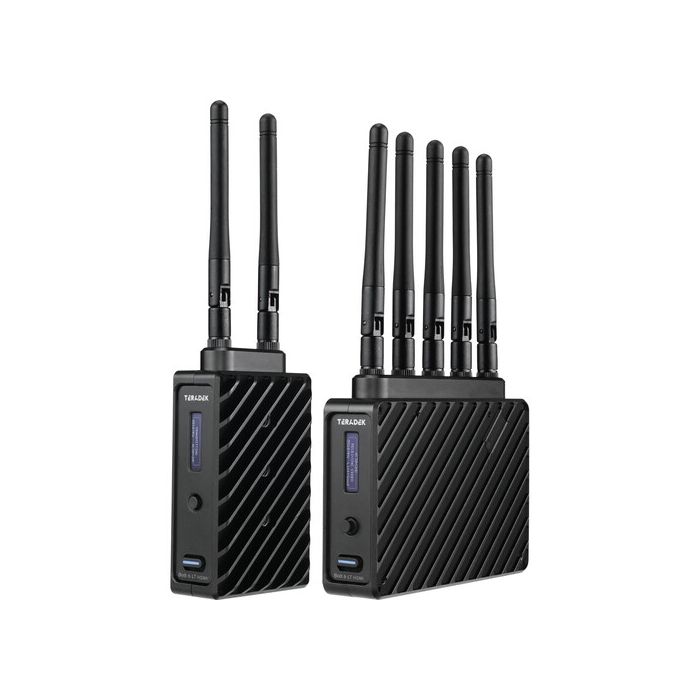

Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount
by TeradekTransmit Video up to 750' Line-of-Sight
Supports New 6 GHz Frequency Band
HDMI Inputs and Outputs
Transmit up to 4K30 Video
10-Bit 4:2:2 Support, No Delay
Compatible with all Bolt 4K Devices
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Bolt 6 LT HDMI 750 HDMI TX/RX Kit V-Mount
- Bolt 6 LT 750 HDMI Transmitter (V-Mount)
- Bolt 6 LT 750 HDMI Receiver (V-Mount)
- 2 x Battery Cover
- 2 x 2-Pin to D-Tap Power Cable (18")
- 2 x USB 2.0 Type-A Male to Type-C Male Cable (39")
- AC Adapter with Cable (6')
- 7 x Antenna
- Shoe Adapter
- 1/4"-20 Light Stand Adapter
- 2 x Screw
- Carry Case
Transmit and receive lossless 4K video up to 750' along line of sight with the Bolt 6 LT HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. This new Bolt 6 line supports the 6 GHz wireless band, which is now freely available. The Bolt 6 system is also compatible with all Bolt 4K devices using the 5 GHz wireless band.
The transmitter inputs up to 4K video over HDMI and the receiver outputs video via HDMI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. A carry case is included to store and transport the kit.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input and output up to 4K via HDMI video and transmit up to UHD 4K30 video
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Antenna Ports | Transmitter: 2 x RP-SMA Female |
Receiver: 5 x RP-SMA Female | |
Video I/O | Transmitter: 1 x HDMI 1.4b Input |
Transmitter: 1 x HDMI 1.4b Output | |
Receiver: 1 x HDMI 1.4b Output | |
Embedded Audio | HDMI: 2-Channel |
Audio I/O | None |
Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input |
Encryption | 256-Bit AES |
Wireless | |
Wireless Range | 750' / 228.6 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz, 20 MHz |
Frequency Range | Non-DFS Frequencies |
US: 5.92 to 6.42 GHz | |
US: 5.19 to 5.23 GHz | |
US: 5.75 to 5.79 GHz | |
DFS Frequencies | |
US: 5.27 to 5.67 GHz | |
Latency | < 0.01 ms |
RF Power | 23 dBm |
Wi-Fi | None |
Bluetooth | Yes |
Format Support | |
Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
480p: 60/59.94 | |
576i: 60 | |
480i: 59.94 | |
Audio Format | 2-Channel 24-Bit 48 kHz |
Timecode Support | Yes |
Power | |
DC Input Power | 6 to 28 VDC |
Battery Type | Transmitter/Receiver: 1 x V-Mount |
Power Consumption | Transmitter: 7 W |
Receiver: 6 W | |
Environmental | |
IP Rating | None |
Operating Temperature | 32 to 72°F / 0 to 40°C |
General | |
Material of Construction | Aluminum, Polycarbonate |
Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm | |
Weight | Transmitter: 7.3 oz / 206 g, Excluding Battery Plate |
Receiver: 10.3 oz / 292 g, Excluding Battery Plate | |
Packaging Info | |
Package Weight | 7.98 lb |
Box Dimensions (LxWxH) | 16.7 x 11.8 x 7.8" |
