Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless TX/RX Deluxe Set (V-Mount) (Demo primjerak)
by Teradek
Availability:
IN STOCK
SKU
TRD-10-2120-V-DEMO
Demo primjerak

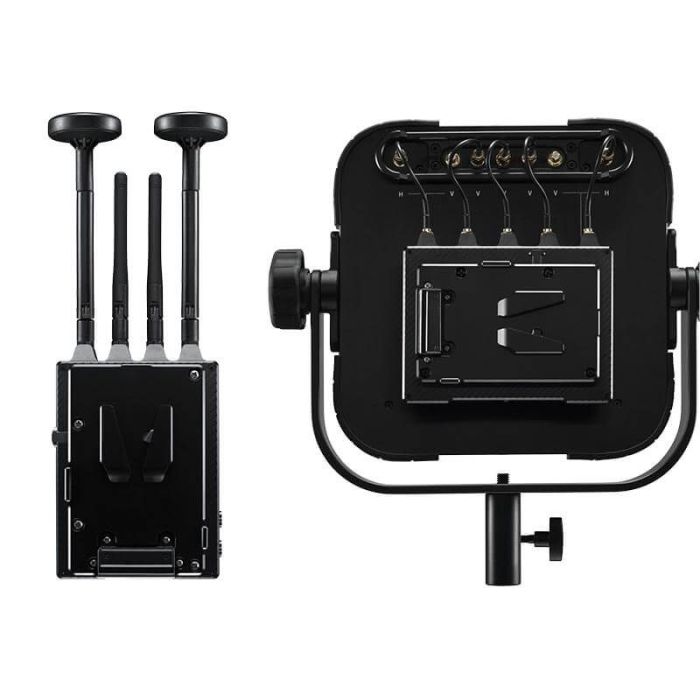

Includes: 1 TX, 1RX, 1 Array 4K Panel Antenna & an SKB Case
Video: Up to 4K60FPS
Range: up to 5000 ft. with Panel Antenna
Regular Price
€20,177.25
* Minimal price in last 30 days
Special Price
€8,725.00
€6,980.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Teradek Bolt 4K MAX 12G-SDI/HDMI Wireless Transmitter
- Bolt 4K MAX 12G-SDI/HDMI Wireless Receiver
- Antenna Array with V-Mount
- 4x Bolt 4K Wire Cover Plate
- Bolt 4K TX Mounting Bracket
- 3/8" Lightstand Adapter
- Hot Shoe Adapter
- 4x Flathead Phillips Screw
- 2x Screw Socket Cap A S (M3 x 16mm)
- 2.5mm Hex L Key
- 2x 18" HDMI Male Type A (Full)-HDMI Male Type A (Full) Cable
- Quick Start Guide
Bolt 4K MAX is the most reliable, highest performance wireless video system we've ever created. Featuring exclusive technology found only in this model, the MAX is designed to be your mission critical wireless workhorse. Transmit up to an 5,000 ft. line of sight with the next-generation Array 4K Panel Antenna. Fixed Frequency Mode locks onto your designated 5GHz channel for enhanced performance in challenging RF environments. A unique antenna design provides a clearer wireless signal with faster reconnection times over long distances.
| Transmitter | Bolt 4K MAX TX V-Mount |
| Video - | |
| Video Inputs | 1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) |
| 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) | |
| Video Outputs | 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω |
| SDI Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Input Cross Conversion | Yes, HDMI to SDI |
| Delay Tx To Rx | <0.001sec |
| Supported Resolutions - | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p50 576p59.94/60 | |
| 480i(NTSC)/576i(PAL) | |
| Video Processing - | |
| Video Compression | Visually Lossless |
| Video Format Conversion Support | Connect an HD source to the Tx and get a 4K signal out of Rx |
| Connect a 4K source to the Tx, get HD resolution out of Rx | |
| You can also mix & match from a single source: | |
| 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx | |
| Input/output configurations are controlled directly on units or via Bolt 4K app | |
| Color Correction | None |
| Audio Processing - | |
| Audio Format | 48kHz 24-bit PCM |
| Inputs - | |
| Audio Input | Embedded SDI/HDMI Audio Input (2 Channel) |
| Physical - | |
| Dimensions | 132 x 91 x 27 mm |
| Weight | Bolt 4K Tx without antennas (no battery plates) = 360g |
| Bolt 4K Tx with 4x antennas (no battery plates) = 408g | |
| Bolt 4K Rx without antennas (no battery plates) = 440g | |
| Bolt 4K Rx with 5x antennas (no battery plates) = 496g | |
| Gold-Mount battery plate set (male+female) = +172g | |
| V-Mount battery plate set (male+female) = +220 g | |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | Integrated V-Mount Male and Female (with passthrough power) |
| Multiple mounting options with M3 and 3/8" holes | |
| Interfaces - | |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Network - | |
| Antennas | 4 External 2dBi RP-SMA antennas (included) |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Channel Bandwidth | 14x 40MHz wide channels |
| Rf Channel Selection | Auto, Manual |
| Manual available for non-DFS Channels | |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power) |
| Range | Up to 1500 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Power - | |
| Power Input | 2-Pin Circular locking Connector 7-28V DC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 20 Watts |
| Environmental - | |
| Operating Temperature | 0-40℃ |
| Receiver | Bolt 4K MAX RX V-Mount |
| Video - | |
| Video Outputs | 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) |
| 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) | |
| SDI Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Input Cross Conversion | Yes, HDMI to SDI |
| Delay Tx To Rx | <0.001sec |
| Supported Resolutions - | |
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 |
| 1080p23.98/24/25/29.97/30/50/59.94/60 | |
| 1080psf23.98/24/25/29.97/30 | |
| 1080i50/59.94/60 | |
| 720p50/59.94/60 | |
| 480p50 576p59.94/60 | |
| 480i(NTSC)/576i(PAL) | |
| Video Processing - | |
| Video Compression | Visually Lossless |
| Video Format Conversion Support | Connect an HD source to the Tx and get a 4K signal out of Rx |
| Connect a 4K source to the Tx, get HD resolution out of Rx | |
| You can also mix & match from a single source: | |
| 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx | |
| Input/output configurations are controlled directly on units or via Bolt 4K app | |
| Color Correction | 17x17x17 3D LUT (supports 10-bit color) |
| Audio Processing - | |
| Audio Format | 48kHz 24-bit PCM |
| Outputs - | |
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) |
| Physical - | |
| Dimensions | 112 x 139 x 27 mm |
| Weight | Bolt 4K Tx without antennas (no battery plates) = 360g |
| Bolt 4K Tx with 4x antennas (no battery plates) = 408g | |
| Bolt 4K Rx without antennas (no battery plates) = 440g | |
| Bolt 4K Rx with 5x antennas (no battery plates) = 496g | |
| Gold-Mount battery plate set (male+female) = +172g | |
| V-Mount battery plate set (male+female) = +220 g | |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | integrated V-Mount Male and Female (with passthrough power) |
| Multiple mounting options with M3 and 3/8" holes | |
| Interfaces - | |
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Usb Interface Functionality | Upgrade via Micro-USB |
| Network - | |
| Antennas | 5 External 2 dBi antennas (included) or optional Array Panel Antenna |
| Wireless | Non-DFS Frequencies: |
| 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz | |
| DFS Frequencies: | |
| 5.270 ~ 5.670 GHz | |
| Channel Bandwidth | 14x 40MHz wide channels |
| Rf Channel Selection | Auto, Manual |
| Manual available for non-DFS Channels | |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power) |
| Range | Up to 1500 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
| Can operate up to 6 sets in same location | |
| Power - | |
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 18 Watts |
| Environmental - | |
| Operating Temperature | 0-40℃ |
