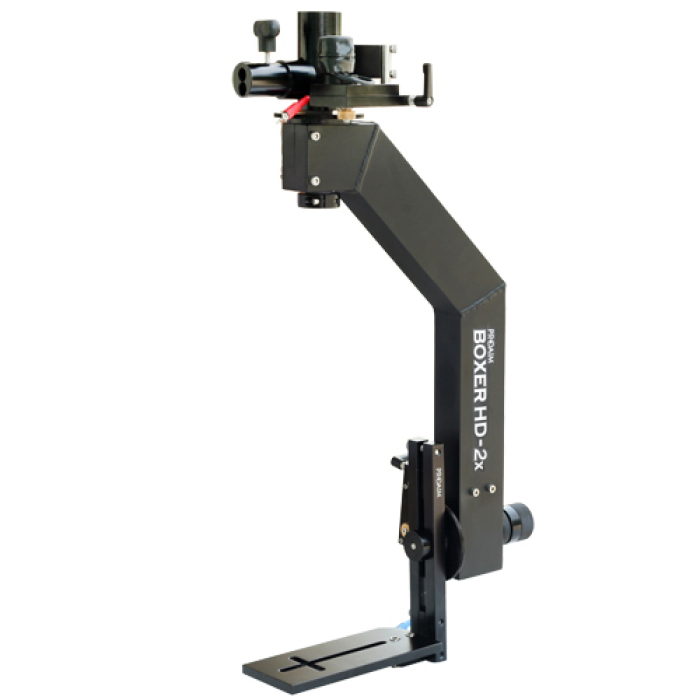

Proaim Boxer HD-2X Motorized Pan Tilt Head
by ProaimCNC MACHINED HIGH PERFORMANCE MOTORIZED PAN TILT HEAD Supports video cinema cameras up to 15kg/33lbs which QUICKLY CONNECTS to a Jib or Crane WITHOUT ANY TOOLS.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Boxer HD-2X Motorized Pan Tilt Head
- Controller with battery box
- Supportive Accessories
- Bag Packing
- Iris/Zoom/Focus
Proaim launches its new Boxer HD-2X Motorized Pan Tilt Head (P-BXR-HD-2X), a remote-controlled pan and tilt head designed for use with video and filming cameras weighing up to 15kg/ 33lb or less. It is controlled by the variable speed joystick control box that connects to the gear motors via the included 13m extension cable. The Robust remote head easily attaches to a jib crane in the upright or hanging position without any tools. The adjustable camera cradle supports horizontal and vertical balancing to achieve zero gravity tilting. The High quality Pan Tilt head offers 360-degree panning and tilting ability while keeping your camera safe and secure. Remote controller easily adjusts remote-head’s pan/tilt/zoom/focus/iris and speed Additional Iris Remote controller system is included for having improved video image quality.
PAN TILT HEAD
Pan Tilt Head Material High Grade Aluminium
Maximum Camera Package Load Capacity 15kg (33lbs)
Pan movement 360 degrees
Tilt movement 360 degrees
Minimum Speed Pan Tilt : 360deg in 20sec
Maximum speed Pan Tilt : 360deg in 5 sec
Motors Maxon motor Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
Gears 2- Brass Small Gears (Dia- 20mm),
2- Aluminium Big Gear (Dia-103mm)
Minimum height of head 18.5 inches
Maximum height of head 25.5 inches
AC Adapter input AC 100 - 240V ; output - DC 12V -2A
Cable Length 13 meter
Weight of Pan Tilt head 5.930 kg
Weight of Joystick box 650grm
Weight of controller box 8 kg
JOYSTICK CONTROLLER
Joystick Controller 2-Axis
Tyco Connectors Male & Female both
Pan Direction Yes
Tilt Direction Yes
