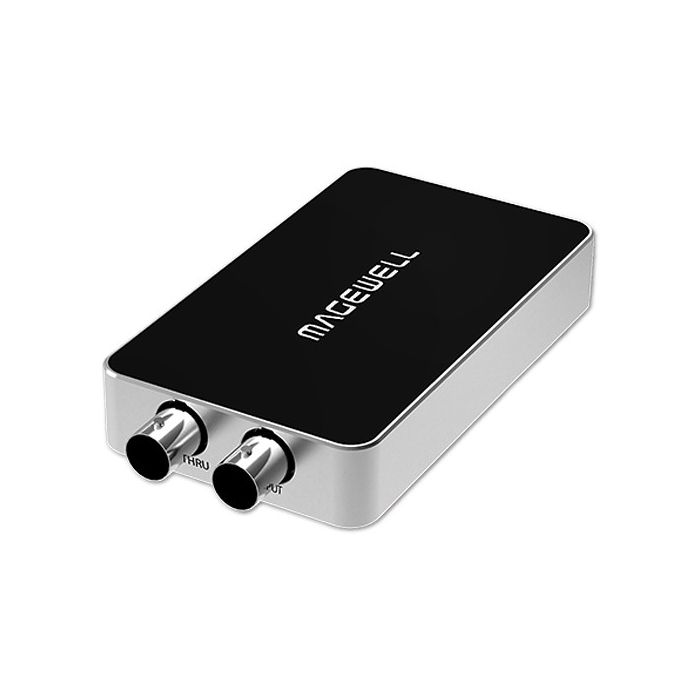

Magewell USB Capture SDI Plus
by MagewellThe Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. It features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer. It also has a line-in audio input, for capturing audio directly, without picture, or you can de-embed the audio from the SDI stream.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Magewell USB Capture SDI Plus, One-Channel 2K Capture Device
- USB 3.0 Cable
- Limited 3-Year Warranty
The Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. It features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer. It also has a line-in audio input, for capturing audio directly, without picture, or you can de-embed the audio from the SDI stream.
Video Processing
- Video processing pipelines with 160MP processing bandwidth
- Video cropping
- Video scaling
- Video de-interlacing
- Weave
- Blend top & bottom field
- Top field only
- Bottom field only
- Video aspect-ratio conversion
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Video color-format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & 'Extended gamut' saturation range
- Video frame-rate conversion
- Vertical flip and mirror
Multiple Devices on One Computer
- Support for connecting multiple USB devices to one system
- Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK
- The USB Capture SDK provide functions including signal status extraction and capture configuration
LED Indicator
- Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed
