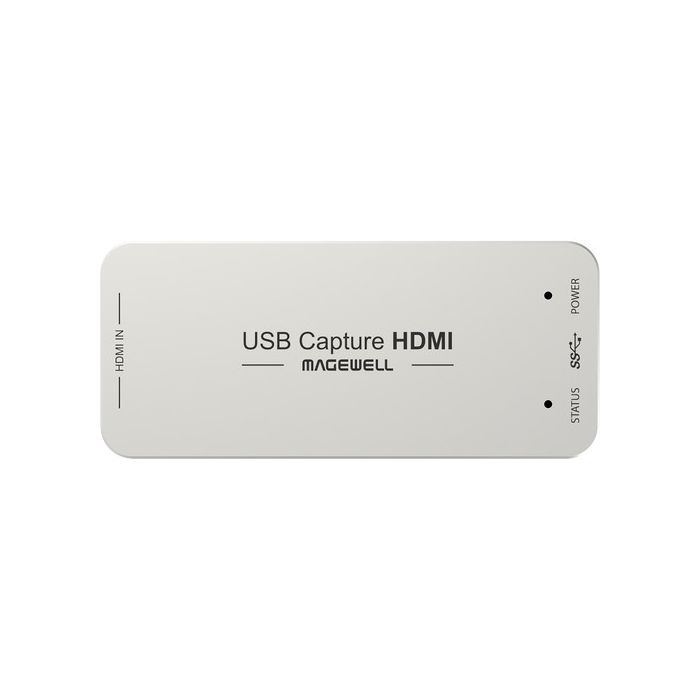

Magewell USB Capture HDMI Gen 2

by Magewell
Availability: 7-10 days delivery
SKU
320600000

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60.

€365.00 €292.00

Package includes

  • Magewell USB Capture HDMI Gen 2
  • USB 3.0 Cable
  • Limited 1-Year Warranty

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60.

If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.

Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers.

If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.

  • No drivers needed for Windows, Mac, or Linux
  • Automatically determines input video format and converts it to the specified output size and frame rate
  • Automatically converts input audio formats to 48 kHz PCM stereo audio
  • 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

Input
Video Input Connectors 1 x HDMI (HDMI 1.4a / DVI) Female
Input Video Format:

  • HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
  • 2048 x 2160
  • 1080p: 60/75 fps

Audio Input Connectors None
Embedded Audio Input HDMI: 2-Channel

OS Compatibility

  • Windows 7 or Later
  • macOS 10.9 or Later
  • Linux
  • Chrome OS

Power Connector None
Power Consumption 5 VDC at 0.5 A (2.5 W)

Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 5 to 90%
