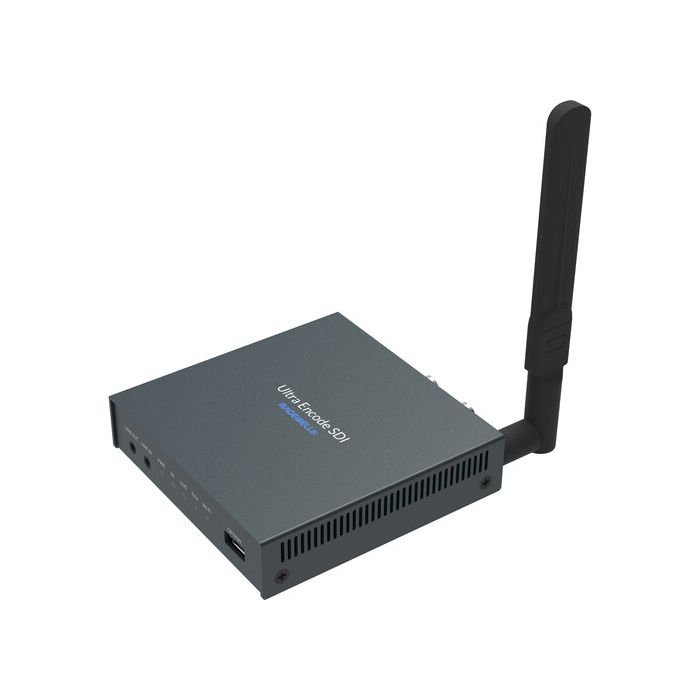

Magewell Ultra Encode SDI

n a simple design with both an Ethernet port and Wi-Fi, the Magewell Ultra Encode SDI features a 3G/HD/SD-SDI input and loop output, 16-channel embedded audio support, and 3.5mm audio input and output. It supports up to DCI 2K60 input and encodes up to 1080p60 in H.264/265 with 2-channel AAC audio. The compact encoder allows dual streaming with a 16 Mb/s main stream and 2 Mb/s sub stream. Audio can be embedded into the encoding stream or extracted via the 3.5mm line out.

You can stream to two destinations at the same time (limited to select protocols), and the encoder provides native support for popular destinations such as Facebook, YouTube, and Twitch. Supported streaming protocols include RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, HLS, TS over UDP, and TS over RTP. The Ultra Encode SDI can be controlled via a Web UI or HTTP APIs.

The encoder can be used desktop mounted or attached to your camera or various supports via an included T-Bracket that provides a 1/4"-20 threaded mounting hole.

Encoding Features

• Dual stream encoding: main stream and sub stream
• Main stream: 16 Mb/s maximum bitrate
• Sub stream: 2 Mb/s maximum bitrate
• Supported Resolutions: 1920 x 1080, 1600 x 1200, 1440 x 1080, 1440 x 900, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 960 x 540, 800 x 600, 768 x 576, 720 x 576, 720 x 540, 640 x 480, 640 x 360, 480 x 360, 480 x 270
• Supported frame rates: 5, 10, 15, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
  H.264/H.265 (HEVC) video encoding
• 2-channel AAC audio encoding at 48 kHz, 16-bit
• Supported audio bitrates: 16, 32, 48, 64, 96, 128, 192, and 256 kb/s
• Streaming Features
• Native Facebook, Twitch, and YouTube support
• Supported streaming protocols: RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, HLS (push), TS over
• UDP, TS over RTP
• Up to 6 sessions of TS over RTP and TS over UDP simultaneously
• Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (maximum of 8 clients simultaneously)
• Up to 6 sessions of RTMP and RTMPS simultaneously
• Stream only one session of HLS (push), RTSP, or NDI|HX2
• 24 Mb/s for all streams is recommended for a wired network connection / 16 Mb/s is recommended for a wireless network connection
• Specify streaming main stream or sub stream for each session
• Web UI
• Supported on IE, Edge, Firefox, Chrome, Safari, and Opera web browsers
• Comprehensive system information and working status in real time
• Video thumbnail preview
• Configure volume, color, color format, and quantization of input and output signals
• Export configuration profiles
• Update firmware
• Provide HTTP APIs
• Other Features
• Compatible standards: SD (ST 259), HD (ST 292), 3Ga (ST 425), 3Gb (ST 425), 3Gb-DL(ST 425), 3Gb-DS(ST 425)
• Standard 1/4"-20 mounting threads provided by T-bracket
• 2 x M3 threaded holes
• LED indicators for power, input signal, streaming, Ethernet connection, and Wi-Fi connection status
• Wired Ethernet network: 10/100/1000 Mb/s
• Wi-Fi 802.11 a/b/g/n/ac
• Support for optional 3G/4G USB mobile broadband modems
