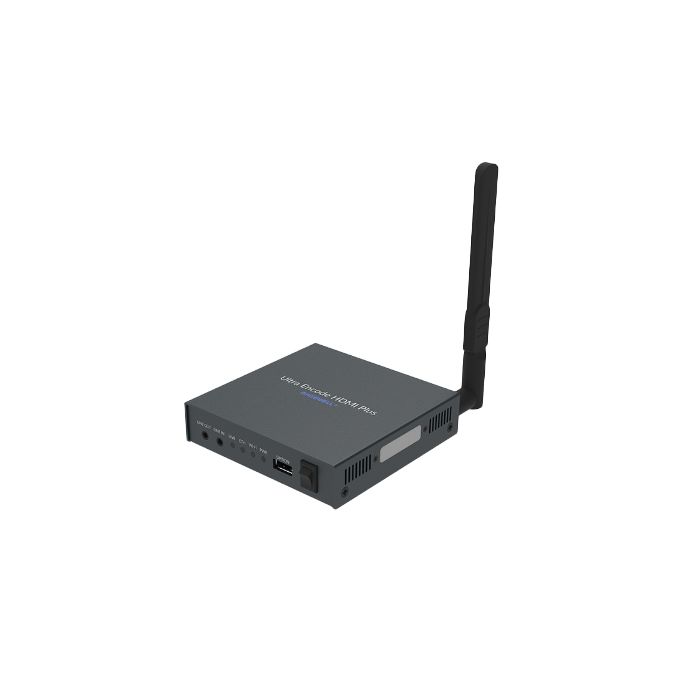

Magewell Ultra Encode HDMI Plus
by Magewell
Availability:
7-10 days delivery
SKU
531500000
A Flexible & Universal Streaming and Recording Encoder.
€686.25
€549.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Ultra Encode HDMI Plus
- Power Adapter (US/EU/UK/AU/JP)
- USB 2.0 Type B cable
- HDMI Cable
- Wi-Fi Antenna
- T-bracket
- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
Input Features
- Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
- Input & loop through 8-Channel, 24-bit HDMI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Streaming Features
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS
- over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
Recording Features
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
Others
- PoE available
- Tally lights for NDI® HX3
- Remote control via Web GUI and Control Hub
- Provide HTTP APIs
