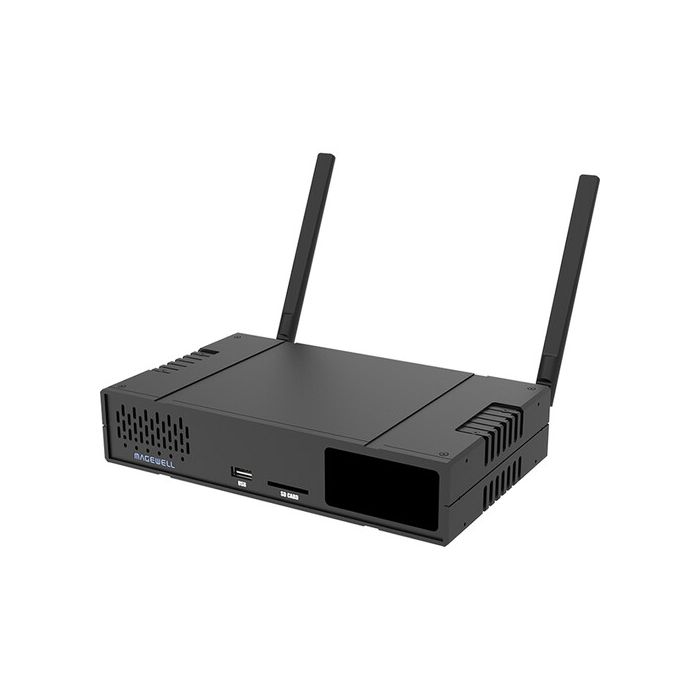

Magewell Ultra Encode AIO
by Magewell- Up to 4096 x 2160p60 Input & Loop Output
- 264/265 Encoding with 8-Ch AAC Audio
- Mix HDMI & SDI in PIP or Side by Side
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Magewell Ultra Encode AIO
- Locking Power Adapter with Plug Adapters
- HDMI Cable
- 2 x Wi-Fi Antenna
- 7 x M2.5 Screw
- Retainer Plate
- 1 RU Short Rack Ear
- 2 x 1 RU Long Rack Ear
The Ultra Encode AIO live media encoder from Magewell upgrades the capabilities of the original Ultra Encode models for advanced use cases. Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bitrates, and both SD card and external USB recording. This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.
Mixes HDMI & SDI Inputs
Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output
Multiple Streaming Outputs
Outputs up to six simultaneous sessions over multiple streaming protocols at 32Mb/s per session
NDI Protocols
Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3
Scheduling
Supports streaming and recording scheduling
Video Encoding
Supports H.264 and efficient H.265 (HEVC) video encoding
Audio Encoding
8-channel AAC audio encoding with 16-256 Kb/s
Streaming Platforms
Native Facebook, Twitch, and YouTube support
Magewell Ultra Encode AIO Specs
IP Encoding/Decoding
|
IP Video |
H.264/H.265: |
|
IP Audio |
AAC: 16 to 256 Kb/s Encoding |
|
Transport Protocols |
HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT |
|
Simultaneous Streams |
6 Streams |
|
Compatible Services |
Facebook Live, Twitch, YouTube Live |
Wireless
|
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
|
Bluetooth |
Yes |
Interfaces
|
Video I/O |
1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input |
|
Audio I/O |
1 x 1/8" / 3.5 mm TRS Input |
|
Other I/O |
2 x USB-A |
|
HDCP Support |
Yes |
|
Embedded Audio |
HDMI/SDI |
Internal Recording
|
Recording Media |
1 x SD (Unspecified Type) |
|
Recording Modes |
4096 x 2160p at 30/60 fps |
Power
|
Power Connector |
1 x Barrel (9 to 18 VDC) Input |
Environmental
|
Operating Temperature |
32 to 72°F / 0 to 40°C |
|
Operating Humidity |
5 to 90% |
|
Storage Temperature |
-4 to 158°F / -20 to 70°C |
General
|
Display |
LCD |
|
Rackmount Size |
1 RU (with Included Hardware) |
|
Dimensions |
8.5 x 5 x 1.75" / 214.9 x 128.2 x 44.55 mm |
Packaging Info
|
Package Weight |
3.515 lb |
|
Box Dimensions (LxWxH) |
11.1 x 6.8 x 4.1" |
