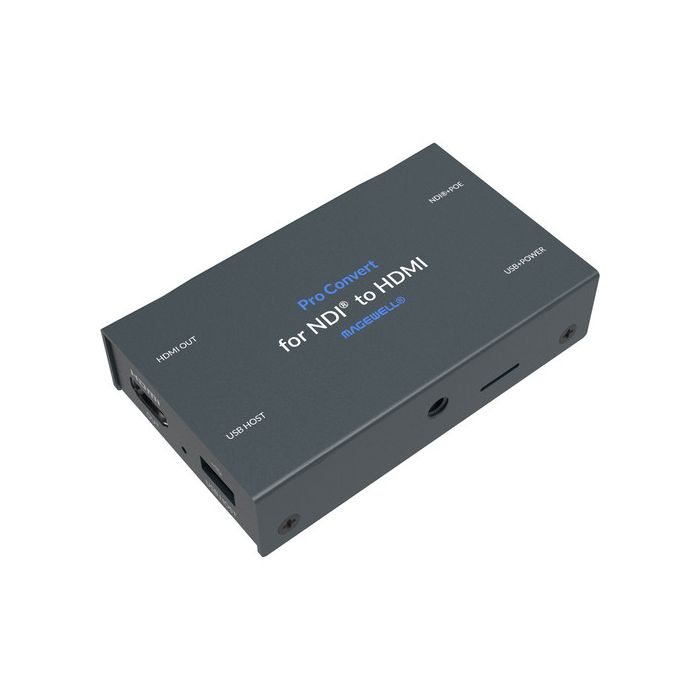

Magewell Pro Convert for NDI to HDMI

by Magewell
Raspoloživost: Dostupno
SKU
641000000

Use the Pro Convert NDI to HDMI Decoder from Magewell to convert an NDI stream with embedded audio to an HDMI signal output. It supports resolutions up to 4K60 over NDI input, and decodes NDI streams up to 2K60 and DCI 4K at 15 fps over HDMI output.

4.025,00 kn 3.220,00 kn

Sadržaj pakiranja

  • Magewell Pro Convert NDI to HDMI Decoder
  • Power Adapter
  • L-Bracket
  • USB Cable
  • Limited 2-Year Warranty

Use the Pro Convert NDI to HDMI Decoder from Magewell to convert an NDI stream with embedded audio to an HDMI signal output. It supports resolutions up to 4K60 over NDI input, and decodes NDI streams up to 2K60 and DCI 4K at 15 fps over HDMI output.

The device can be powered via an included USB power adapter or over PoE using the RJ45 port.

A companion Web UI allows web configuration from a wide variety of web browsers, such as the device name, source name, NDI and EDID identifiers, and other settings. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and durable design.

HDMI Specific Features

  • Decode NDI, RTSP, HTTP, RTMP Pull/Push, and TS streams over UDP/SRT/RTP
  • H.264 and H.265 format support
  • Customized EDID support
  • Up to 2K60 NDI input stream
  • Up to DCI 4K HDMI output signals
  • NDI decoder converts from 2K to 2K60 output; from 4K to 4K15 output
  • 96 kHz, 16-bit, 8-channel audio streams

Supported Web Browsers

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

Video Decoding Features

  • 150 megapixel decoding
  • Tally indicators
  • Audio meter and audio meter scale
  • Audio gain, sample rate, and channel settings
  • Center marker
  • Safe area
  • Video scaling, frame rate, and aspect ratio conversion
  • Video color format conversion with YUV BT.601, YUV BT.709 color format support
  • Auto or manual selection of input color format
  • Remote control passthrough for PTZ camera
  • Video frame rate conversion
  • Video vertical and mirror flip

Supported Software

  • Pro Convert encoder
  • Magewell Bridge for NDI
  • NewTek Connect
  • NDI Studio Monitor
  • OBS Studio
  • vMix
  • VLC
  • IP Camera
  • Haivision
