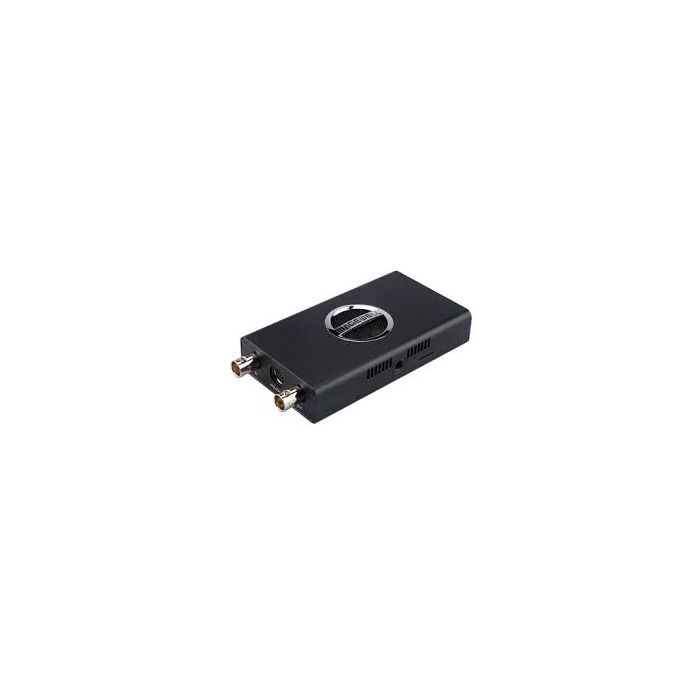

Magewell Pro Convert 12G 4K SDI Plus

by Magewell
Raspoloživost: Isporuka 7-10 dana
SKU
640900000

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI®

9.900,00 kn 7.920,00 kn

Sadržaj pakiranja

  • Magewell Pro Convert 12G 4K SDI Plus
  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket
  • Mini-DIN 8 breakout cable
  • Tally light

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI®
Connects existing source equipment into NDI-enabled, IP-based media networks
Supports inputs up to 4K at 60fps with 16 channels of embedded audio
Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Input Features

  • Single-link 12G-SDI input and loop-through
  • Support for up to 4096x2160 60fps input
  • Support for up to 16 (mono) audio channels

NDI® Format

  • Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
  • Send NDI streams across network segments
  • Remotely control PTZ cameras via NDI
  • Support for NDI 4.x

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI
  • Tally lights and camera mounting for live production applications
  • HTTP-based APIs for custom integration

SDI Input
Max Video input:

  • 4096x2160 60fps. Supported resolutions include:
  • 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
  • 1280x720p at 50/59.94/60fps
  • 720x576 at 25p/50i (PAL SD)
  • 720x480 at 29.97p/59.94i (NTSC SD)

Support for RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Max Audio inputs: 16 embedded channels

NDI® Output:
Max output: 4096x2160 60fps 4:2:2 8-bit
Output frame rate same as the original, 1/2, 1/3 or 1/4 input frame rate
Output resolution at the resolution of input, typical formats or any custom resolution. Typical output:

  • 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps

NDI® 4.1

SDI Processing Features
Input/loop-through interfaces: SD/HD/3G/6G/12G SDI
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards

Web GUI Management:
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, as well as the network connection.
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browser
Support with HTTP APIs

PTZ & Tally Control:
Control PTZ cameras that use VISCA UDP, VISCA, PELCO-D or PELCO-P protocols
Program and preview tally
A Mini-DIN 8 breakout cable is provided for PTZ control and tally connection

USB Interface:
USB2.0 Type B
5V/2.1A power supply

Supported Products:
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product
