Magewell Pro capture mini HDMI card

by Magewell
Availability: 7-10 days delivery
SKU
111100000

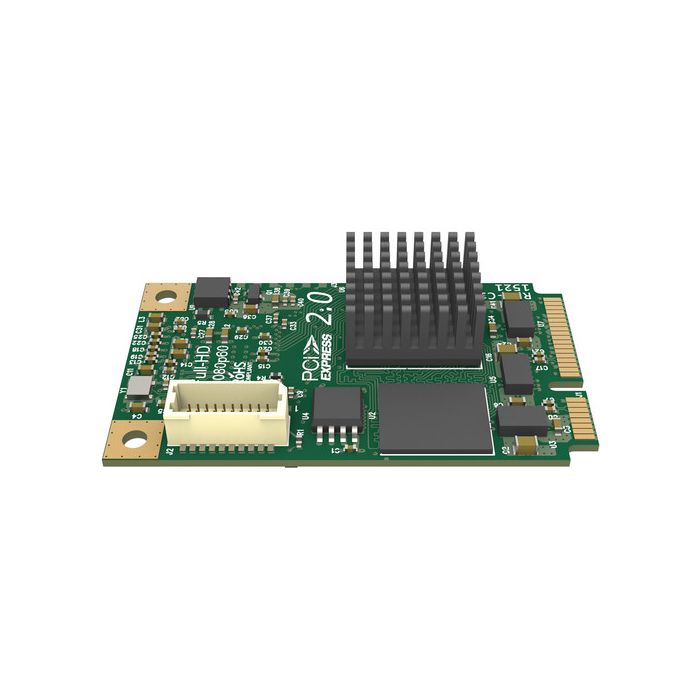

The Magewell Pro Capture Mini HDMI with Small Heat Sink is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface.

€301.25 €241.00

Package includes

  • Magewell Pro Capture Mini HDMI with Small Heat Sink
  • HDMI Adapter
  • Limited 2-Year Warranty

The Magewell Pro Capture Mini HDMI with Small Heat Sink is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface.

HDMI Features

  • Customized EDID
  • Extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
  • Full colorimetry
  • 8/10/12-bit color depths
  • RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling
  • Up to 8-channel IEC60958/IEC61937 audio streams
  • Extraction of audio formation information and channel status data
  • Extraction of video timing information
  • Extraction of 3D format information
  • Extraction of Sony/Canon DSLR time code

Display Format Support

  • 4:2:0 8-bit : NV12, I420, YV12
  • 4:2:2 8-bit : YUY2, YUYV, UYVY
  • 4:4:4 8-bit : V308, IYU2, V408, BGR24, BGR32
  • 4:4:4 10-bit : V410, Y410
  • More display formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

  • Two video processing pipelines with ~180 megapixels processing bandwidth for each one
  • Full 10-bit video processing
  • Cropping
  • Scaling
  • De-interlacing
  • Frame rate conversion
  • Aspect ratio conversion
  • Color format conversion
  • OSD composition

Video De-Interlacing

  • Weave
  • Blend top and bottom field
  • Top field only
  • Bottom field only

Video Color Format Conversion

  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of display color format, quantization range, and saturation range
  • RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
  • Limited or Full quantization range
  • Limited, Full, and Extended Gamut saturation range

Firmware Upgrades

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown when they're not in use

Other

  • Unlimited display streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
