Lilliput T5 5" Touch On-Camera Monitor

by Lilliput
Raspoloživost: Dostupno
SKU
LIL-T5

5" 1920 x 1080 LCD Touchscreen Display
HDMI I/O Supports DCI & UHD 4K, HD
Supports HDR
400 cd/m² Brightness

1.775,00 kn 1.420,00 kn

Sadržaj pakiranja

  • Lilliput 5" Touch On-Camera HDMI Monitor
  • HDMI Cable
  • Mini Cold Shoe Adapter
  • Sunshade Mounting Frame
  • Sunshade

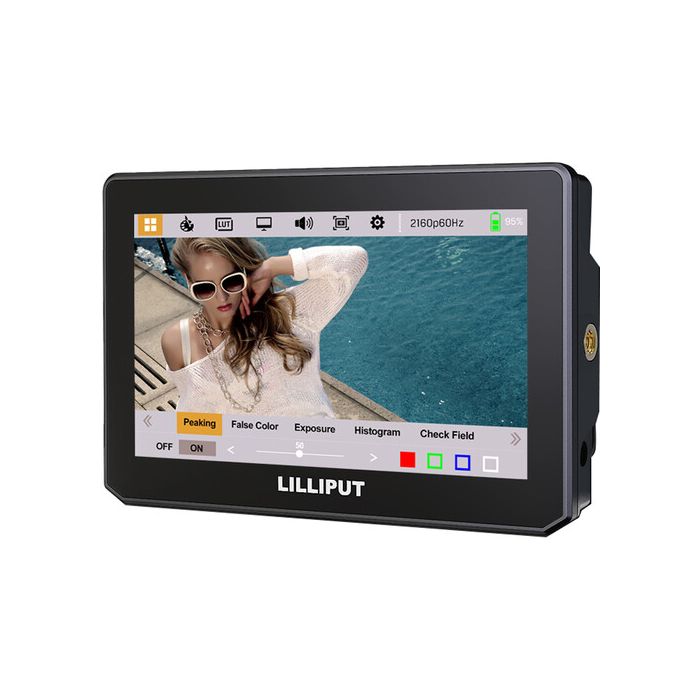

Compact, lightweight, and well suited for on-set work, the Lilliput 5" Touch On-Camera HDMI Monitor can handle DCI and UHD 4K as well as 1080p, 1080i, and 720p signals via its HDMI input. The monitor scales input video to its 1920 x 1080 IPS screen that provides you with a 1000:1 contrast ratio, 400 cd/m² maximum brightness, and a touchscreen interface.

A push-button power switch and five buttons sit along the top of the monitor providing access to the on-screen menu system. The IPS LCD touchscreen has a 170° angle of view, side-to-side and top-to-bottom, and allows you to control and adjust the monitor using capacitive touch control. The monitor supports image and camera-related display tools that help ensure your images are in focus and properly exposed. Three 1/4"-20 threaded mounting holes enable mounting the monitor on your camera in a variety of positions.

Function Buttons
The five control buttons on top of the monitor allow you to navigate the on-screen menu system. A sixth button (red) powers the monitor on and off and activates the touch switch.
Touchscreen
The monitor features a touchscreen that allows you to access the monitor's signal status, menu settings, and function displays.
Functions
The monitor supports the following:
Audio level display
Histogram
False color
User settable markers
Focus peaking
Zebra bars
Check field
Aspect ratio
Zoom
3D LUT import (through the USB port)
HDR
Pixel zoom
H/V delay
Image flip
One-to-one pixel
Freeze frame
LUTs
You can apply a variety of real-time 3D LUTS.

Number of Displays 1
Panel Type IPS-Type LCD
Display Size 5.0" / 12.7 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 170°
Vertical: 170°
Touchscreen Yes
Maximum Brightness 400 cd/m2
Contrast Ratio 1000:1
Pixels Per Inch (ppi) 440 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Zebra
I/O
Video 1 x HDMI Type A (HDMI 1.4b) Input
1 x HDMI Type A (HDMI 1.4b) Output
Embedded Audio HDMI: 8-Channel
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x 5.5 mm Barrel (8 VDC) Output
Other I/O 1 x USB 2.0 (USB Type-A) Input
Card Slot None
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
Gamma Curve HDR-HLG, ST2084, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x LP-E6, L-Series
Power Consumption 12 W (Maximum)
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
