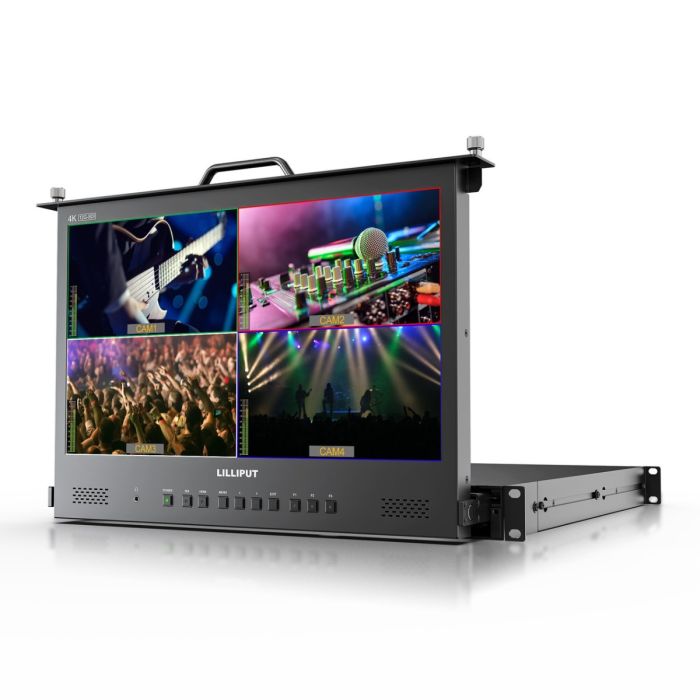

Lilliput RM1731S-12G Monitor
by Lilliput
Availability:
7-10 days delivery
SKU
LIL-RM1731S-12G
As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction.
€2,373.75
€1,899.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput RM1731S-12G Monitor
- 12V 3A DC Power Adapter
- Tally Connector
As a 1RU pull-out rackmount monitor, features 17.3″ 1920×1080 FullHD IPS screen with fine picture quality and good color reduction. It’s interfaces support 12G-SDI / HDMI2.0 signals inputs and loop outputs;For the advanced camera auxiliary functions, such like waveform, audio vector scope and others, all are under professional equipment testing and correction, parameters accurate, and comply with industry standards.
- Screen Resolution:1920 x 1080
- Interface:12G-SDI, HDMI2.0, LAN
- Feature:4×12G-SDI Quad-Split Multiview, Remote Control, HDR/3D-LUT
DISPLAY | |
Panel | 17.3" IPS 8bits |
Physical Resolution | 1920x1080 |
Aspect Ratio | 16:9 |
Brightness | 300 nits |
Contrast | 1200:1 |
Viewing Angle | 170°/170° (H/V) |
Color Space | 100% Rec.709 |
HDR Supported | HLG; ST2084 300/1000/10000 |
INPUT | |
HDMI | 1 (HDM 2.0) |
12G-SDI | 4 |
OUTPUT | |
HDMI | 1 (HDMI 2.0) |
12G-SDI | 4 |
SUPPORTED FORMATS | |
HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
12G-SDI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
AUDIO IN/OUT | |
Audio Channel | HDMI: 8ch 24-bit; SDI: 16ch 48kHz 24-bit |
Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
POWER | |
Input Voltage | DC 12-24V |
Power Consumption | ≤19W (12V) |
ENVIRONMENT | |
Operating Temperature | 0°C~50°C |
Storage Temperature | -20°C~60°C |
DIMENSIONS | |
Dimensions (LWD) | 482.5mm x 44mm x 507.5mm |
Weight | 10.2kg |
