Lilliput RM-1730S Monitor
by Lilliput
Availability:
7-10 days delivery
SKU
LIL-RM-1730S

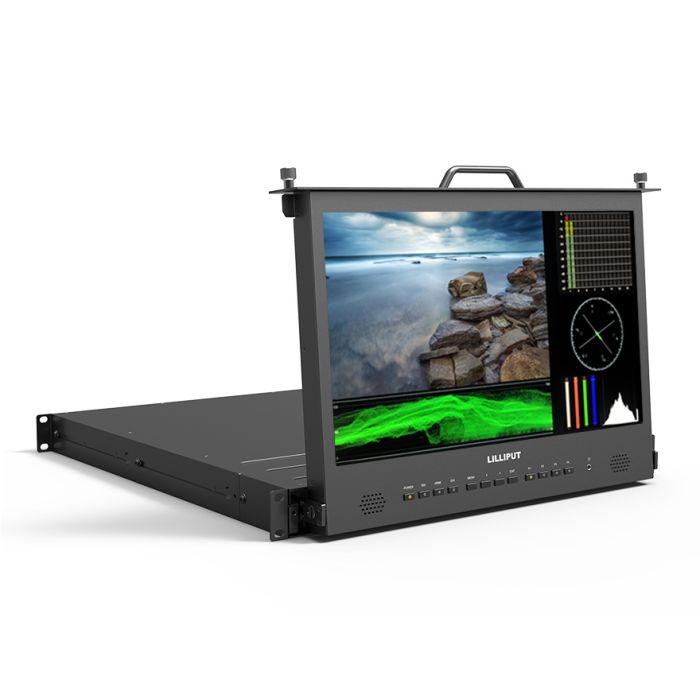

LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60.
€1,498.75
€1,199.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
The LILLIPUT RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor features a 16:9 IPS panel and offers a maximum resolution of 1920 x 1080p60. It offers a brightness rating of 300 cd/m2, contrast ratio of 700:1, and viewing angles of 178°. The monitor comes with a host of functions including cross conversion, timecode, pixel zoom, vectorscope, waveform, level meter, peaking, false color, histogram, exposure, check field, color bars, and Image flip. Its 1 RU design allows it to be easily integrated into a studio or post-production rackmount setup.
- Metal housing with pullout drawer for protection from shocks and drops
- Monitor powers off automatically when screen is down and pushed in
- Signal cross conversion from SDI to HDMI, and from HDMI to SDI out
- Supports various methods of mounting for use in broadcast, on-site monitoring, and live broadcast vans
- 1 RU rackmount design
|
DISPLAY
|
Display Screen | 17.3" IPS |
|---|---|---|
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300cd/m2 | |
| Contrast | 700:1 | |
| Viewing Angle | 178°/178°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
| DVI | 1 | |
| AUDIO | 2 (L/R) | |
| TALLY | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 2 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB -Level A & Level B |
1080p(60/59.94/50) 1080i(60/59.94/50) 720p(60/59.94/50/30/29.97/25/24/23.98) |
|
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 2.8A |
| Input Voltage | DC 10-18V | |
| Power Consumption | ≤32W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 482.5×44×507.5mm |
| Weight | 8.6Kg |
