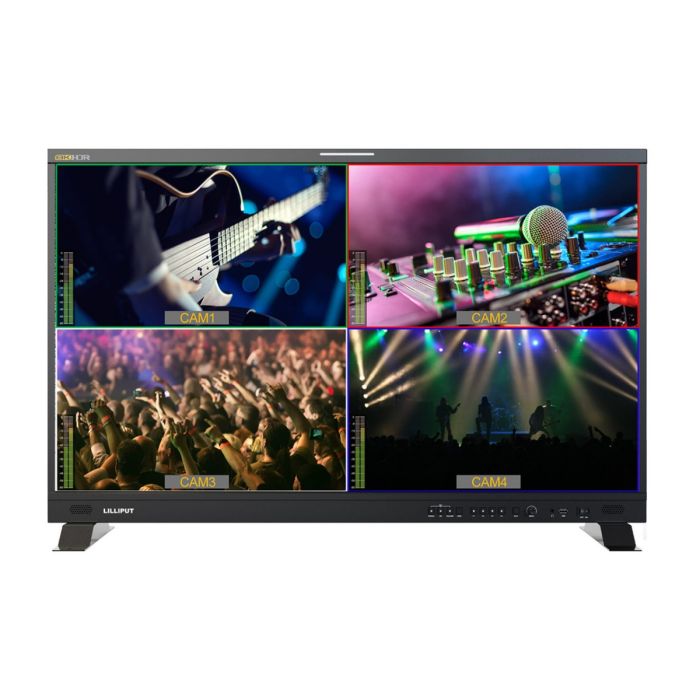

Lilliput Q43-8K Production and Studio Monitor
by LilliputProduction/Broadcast monitor for professional camcorder & video camera application for video post production and making movies.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Q43-8K 8K | 12G-SDI 43" Production Monitor
- 24V 7.5A DC Adapter
8K | 12G-SDI 43'' PRODUCTION MONITOR
Production/Broadcast monitor for professional camcorder & video camera application for video post production and making movies.
Support Up to 8K 60Hz Video
In addition to the different 4K 60Hz video signals provided by four single-link 12G-SDI, the monitor with four 12G-SDI interfaces is also compliant with the ST2082-12 video protocol standard and can generate video signals up to 8K 60Hz.
Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space. Color calibration supports the PRO/LTE version of ColourSpace CMS by Light Illusion.
COLOR SPACE
100% Rec.709 Color Space.
COLOR CALIBRATION
Different calibrated color spaces such as Rec.709, NTSC, DCI-P3 can be selected.
3D LUT
Built-in 3D-LUT, featuring 17 defualt logs and 6 user logs.
Remote control application
Connect your computer to control the monitor via application. The interfaces of RS422 In and RS422 Out can realize syncronization control of multile monitors.
LAN/RS422
Select an appropriate port from LAN or RS422 t connecto to the user's operating interface, allowing the application to identify the monitor before control.
Quad-split multiview
In quad-split multiview mode, any input signal can be selected and charged among 12G-SDI, HDMI 2.1 and 12G-SFP+. Moreover, the images can be differentiated with colorful borders to enhance the senses of monitoring.
When the quad-split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.
Easy-to-use
F1-F4 user-definable buttons to custom auxiliary functions as shortcut, such as peaking, underscan and checkfield. Use the Dial to select and adjust the value among of sharpness, saturation, tint and volume, etc.
Wall Mount
Compatible with most 400x400mm wall-mounted brackets on the market. (Screw: M6/30mm)
Studio Monitoring
Monitor can be used for 4K video monitoring in the studio, and can also be combined with other video monitor to create a video wall.
| DISPLAY | |
| Panel | 43" |
| Physical Resolution | 3840×2160 |
| Aspect Ratio | 16:9 |
| Brightness | 400cd/m2 |
| Contrast | 1200:1 |
| Viewing Angle | 178°/178° (H/V) |
| HDR | ST2084 300/1000/10000/HLG |
| Supported Log formats | SLog2/SLog3/CLog / NLog/ArriLog / JLog or User... |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Calibration | Calibration to Rec. 709 with calibration meter |
| VIDEO INPUT | |
| SDI | 4x12G, (Supported 8K-SDI Formats Quad Link) |
| SFP | 1×12G SFP+(Fiber module for optional) |
| HDMI | 1xHDMI 2.0 |
| VIDEO LOOP OUTPUT | |
| SDI | 4x12G, (Supported 8K-SDI Formats Quad Link) |
| HDMI | 1xHDMI 2.0 |
| SUPORTED FORMATS | |
| SDI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... |
| SFP | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... |
| HDMI | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... |
| AUDIO | |
| SDI | 16ch 48kHz 24-bit |
| HDMI | 8ch 24-bit |
| Ear Jack | 3,5 mm |
| Bult-in Speakers | 2 |
| REMOTE CONTROL | |
| RS422 | In/Out |
| GPI | 1 |
| LAN | 1 |
| POWER | |
| Input Voltage | DC 24V |
| Power Consumption | ≤77W (24V) |
| ENVIROMENT | |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| OTHER | |
| Dimensions(LWD) | 968.5mmx604.9mmx48.5mm |
| Weight | 14.5kg |
