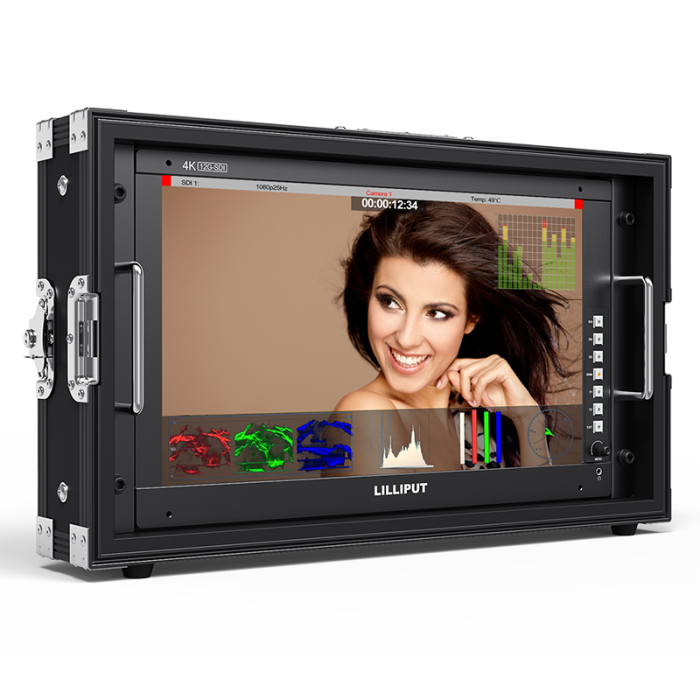

Lilliput Q17 17" Monitor with Hardcase
by LilliputThe Q17 17.3" 12G-SDI/HDMI HDR Monitor from Lilliput is a 1920 x 1080 resolution production monitor that supports up to UHD 4K input and loop output.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (Gold Mount)
- 15 VDC Power Adapter with AC cord
- VESA Mount Plate
- Gold Mount Battery Plate
- Carrying Case
- 2 x Base Bracket
- Tilt Bracket
- USB Flash Drive
- Acrylic Screen Protector
Its display provides 1200:1 contrast, 300 cd/m2 brightness, and a wide 170 x 170° viewing angle. The integrated battery plate enables you to use longer-lasting Gold mount batteries when not working near an AC power source. The Q17 monitor features one HDMI 2.0, two 12G-SDI, and two 3G-SDI inputs and loop-through outputs. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link options plus an expansion slot for an optional 12G SPF+ module.
Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, selectable markers, and color temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.
Versatile Inputs/Loop Outputs:
- 12G-SDI single/dual/quad link
- 3G-SDI
- HDMI 2.0
- Color Calibration
- Color Spaces
- SMPTE C
- Rec. 709
- EBU
- Color Temperature
- 3200/5500/6500/7500/9300K
- Customizable settings
- Gamma Options
- Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas
- Remote Control
- LAN control
- RS-422 control
- Lissajous audio vector
- Audio levels
- High Dynamic Range
- Selectable HDR offers greater detail in highlights and shadows
- Supports ST2084/ST2084 1000/HLG
- Display Functions
- Quad-view
- False color
- Focus peaking
- Check field
- Image flip
- Image freeze
- Selectable markers
- Color temperature selection
- Versatile Mounting
- Tabletop base
- Tilting bracket
- Carrying case
- Rack-mountable
| Panel Type | IPS-Type LCD |
| Display Size | 17.3" / 43.9 cm |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 1200:1 |
| Pixels Per Inch (ppi) | 127 ppi |
| Color Gamut | 100% Rec. 709 100% SMPTE-C 100% EBU |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Wi-Fi | None |
| Video | 2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 2.0) Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Loop Output 1 x HDMI Type A (HDMI 2.0) Loop Output |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power | 1 x 4-Pin XLR (15 VDC) Input |
| Other I/O | 1 x GPI (RJ45) Input 1 x LAN () Input 1 x RS-422 (RJ45) Input 1 x RS-422 (RJ45) Output |
| Expansion Slots | 1 x SFP+ Slot |
| Card Slot | None |
| Video Format | SDI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Gamma Curve | HDR-HLG, Sony S-Log, Sony S-Log 2, Sony S-Log 3 |
| Battery Type | 1 x Gold Mount |
| Power Consumption | 26.5 W |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 17.1 x 10.4 x 2.1" / 434 x 263 x 54 mm |
| Weight | 7.1 lb / 3.2 kg |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 20.45 lb |
| Box Dimensions (LxWxH) | 21.3 x 15.4 x 7.6" |
