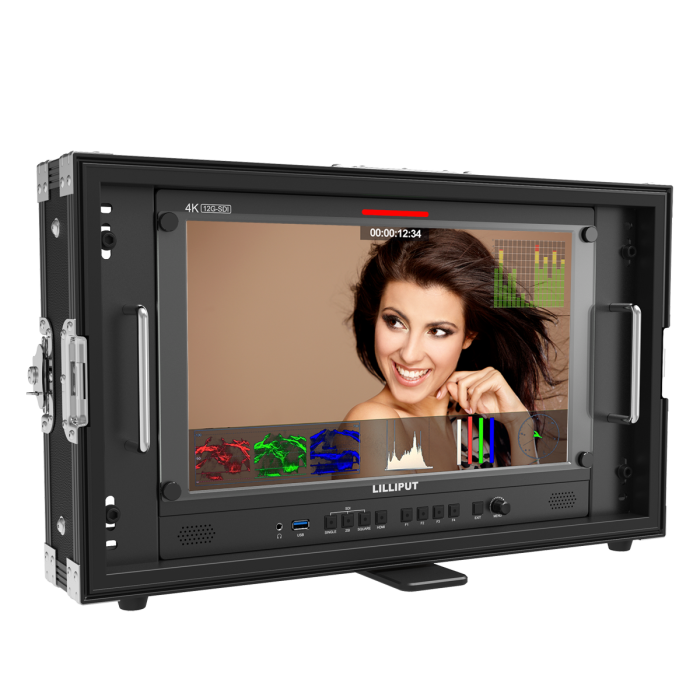

Lilliput Q15 15.6" 12G-SDI 4K HDR Monitor with Hardcase

by Lilliput
Availability: In stock
SKU
LIL-Q15HC

The Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 15.6" native UHD 4K monitor , useful for both studio and field situations.

Akcija traje do isteka zaliha!
Regular Price €1,861.50 * Minimal price in last 30 days Special Price €1,582.00 €1,265.60
-15%

Package includes

  • Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)
  • Power Adapter
  • VESA Mount Plate
  • Base Bracket
  • USB Flash Disk

Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single, dual, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a Gold mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

Features:

  • Monitoring Tools
  • Peaking
  • Check field
  • Image rotation/flip
  • Overscan
  • Underscan
  • Image freeze
  • Pixel-to-pixel
  • False color
  • Exposure
  • Histogram
  • Timecode (SDI-only)
  • Aspect ratio selection
  • Screen markers
  • Color space
  • HDR
  • Color temperature adjustment
  • HDR and 3D LUTs
  • When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.
  • Audio
  • The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.
  • Assignable Buttons
  • Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
  • Remote Control
  • The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.
  • Calibration
  • The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.
  • Fiber
  • An integrated slot accepts an optional SFP+ module, should you require SFP+ fiber connection.
Display
Display Size 15.6" / 39.6 cm
Resolution 3840 x 2160
Aspect Ratio 16:9
Viewing Angle Horizontal: 176°
Vertical: 176°
Touchscreen No
Maximum Brightness 330 cd/m2
Contrast Ratio 1000:1
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 282 ppi
Real-Time LUT Monitoring HDR
Image Controls Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A (HDMI 2.0) Input
2 x BNC (12G-SDI) Input
2 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Output
2 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Output
Embedded Audio HDMI: 8-Channel
SDI: 16-Channel
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 2
Power 1 x 4-Pin XLR (24 VDC) Input
Other I/O 1 x GPI (RJ45) Input
1 x LAN (RJ45) Input
1 x RS-422 (RJ45) Input
1 x RS-422 (RJ45) Output
1 x USB 2.0 (USB Type-A) Input
Media/Memory Card Slot None
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
Power
DC Input Power 12 to 24 VDC at 1.2 A
Power Consumption 32.5 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Dimensions 15.5 x 10.5 x 2" / 393 x 267 x 51.4 mm
Weight 6.4 lb / 2.9 kg
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 12.88 lb
Box Dimensions (LxWxH) 22.9 x 13.8 x 7.5"
