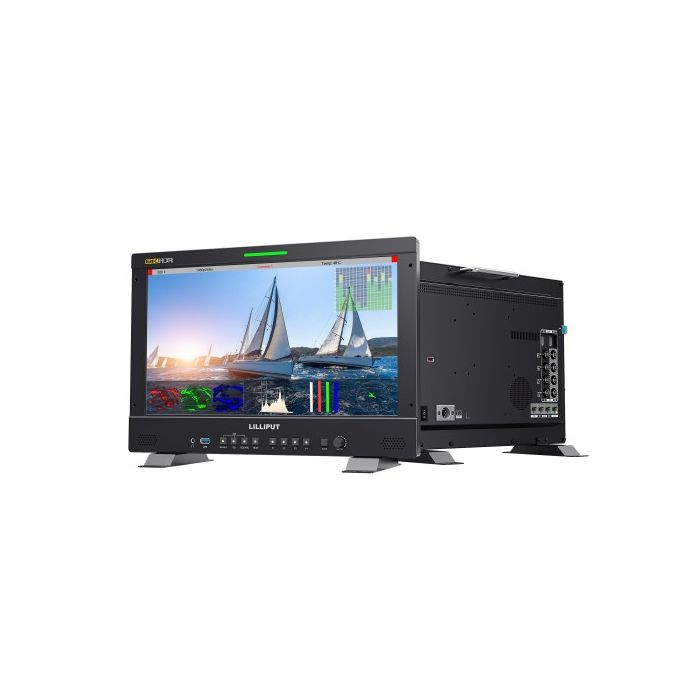

Lilliput Q15-8K 12G-SDI HDMI Monitor
by LilliputThe Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput Q15-8K 12G-SDI HDMI Monitor
The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.
With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 600cdm² |
| Colour Space | REC .709 and DCI-P (90%) |
| Contrast Ratio | 1700 : 1 |
| Resolution | 3840 x 2160 |
| Viewing Angle | 170° / 170° |
| HDR | ST2084 300/1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 15.6" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use |
| Supported Formats | |
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| Monitor Specification | |
| Video Inputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input |
| Video Outputs | SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output |
| Size | |
| Dimensions | 393 x 267 x 41.4 mm |
| Weight | 3 Kg |
| Power | |
| Input Voltage | DC 12V - 24V |
| Power Consumption | <= 60W (15V) |
| Environment | |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C to 60°C |
