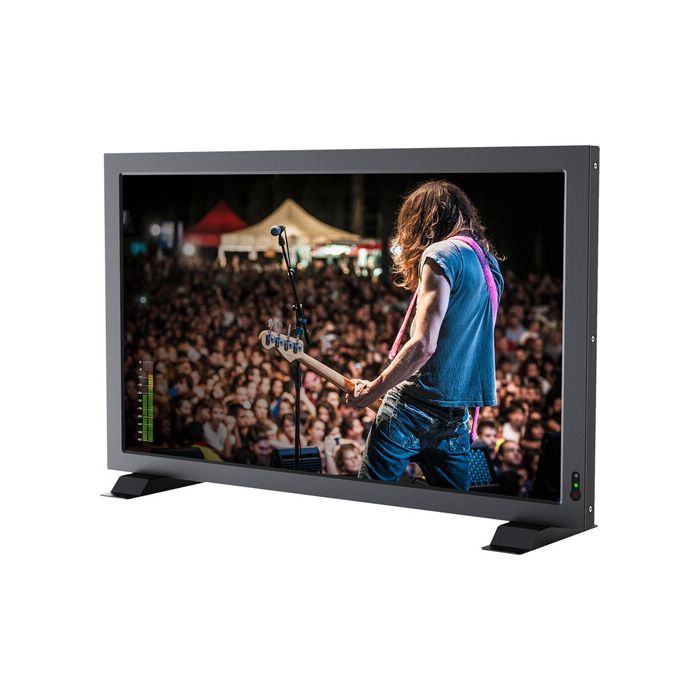

Lilliput PVM210 21.5" 4K HDMI HDR Professional Video Monitor
by LilliputProfessional 21.5'' 4K HDMI Professional Video monitor
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput PVM210S 21.5" 4K HDMI / 3G-SDI HDR Professional Video Monitor
- 15V 4A DC Power Adapter
- HDMI A to A Cable
- Base Stand
- VGA Cable
- Audio & Video Input Cable

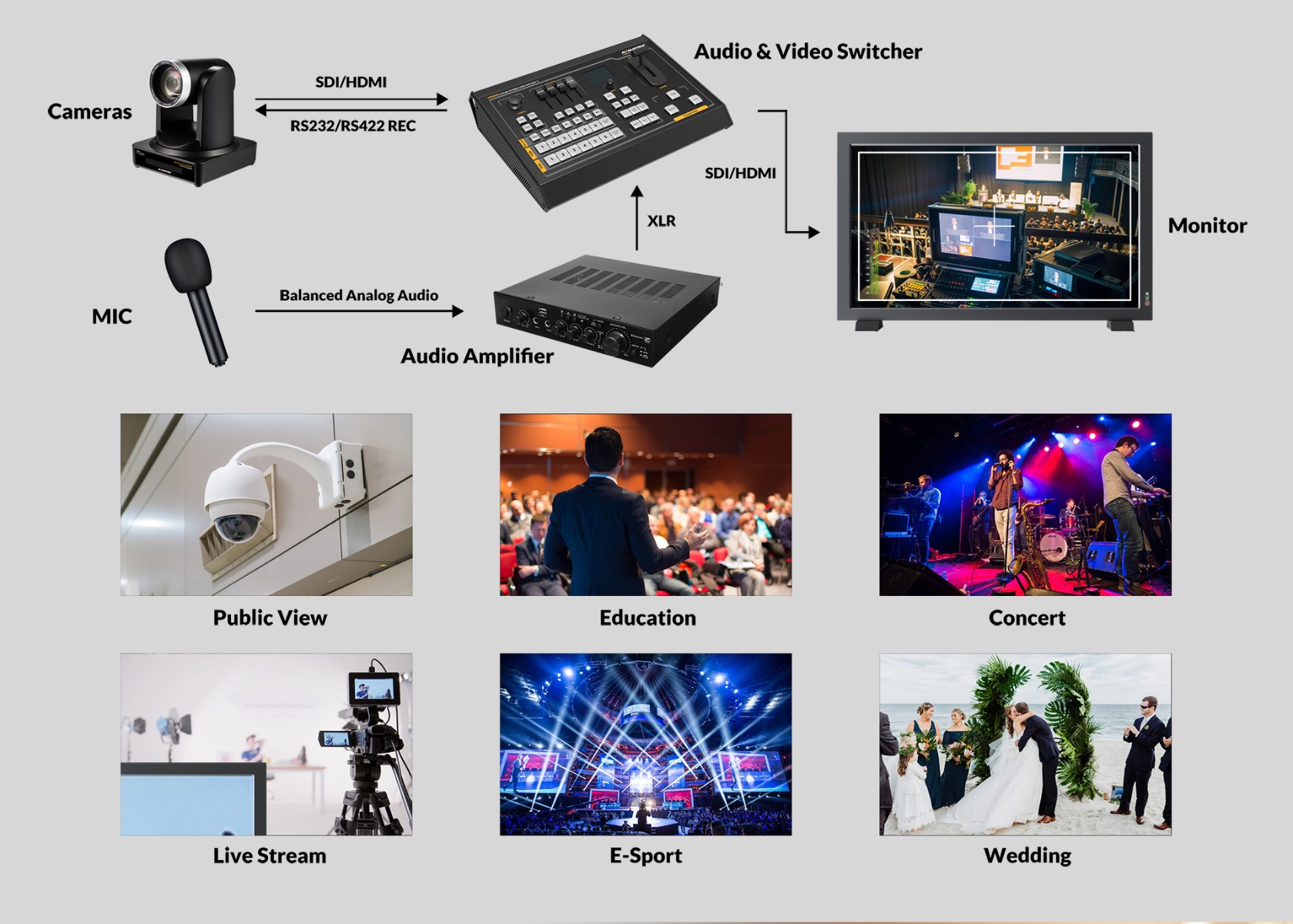

High brightness Monitor with FHD Resolution, 101% Rec.709 color space. Application for live events, conference presentation, public view monitoring, etc.
Layout and Composition
The image output from the camera to TV live is often slashed. This monitor comes with Center Markers and Safety Markers, allowing to adjust the best angle of cameras in real time to show the most important images in center of shot.
Audio Level Monitoring
With Audio Level Meter turned on, it is used to monitor current audio output and avoid being indifferent after an audio interruption as well as keep the sound within a reasonable DB range.
1000 nit High-Bright
Featuring an amazing 1000 nit High Bright LCD screen, with the sunshine readable screen which cover 101% Rec.709 color space, therefore the gear suitable for any innovative outdoor framing.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality.
| Model | PVM210S | PVM210 | |
| DISPLAY | Panel | 21.5 ” LCD | 21.5 ” LCD |
| Physical Resolution | 1920*1080 | 1920*1080 | |
| Aspect Ratio | 16:09 | 16:09 | |
| Brightness | 1000 cd/m² | 1000 cd/m² | |
| Contrast | 1500：1 | 1500：1 | |
| Viewing Angle | 170°/170°(H/V) | 170°/170°(H/V) | |
| Color space | 101% Rec.709 | 101% Rec.709 | |
| HDR Supported | HLG;ST2084 300/1000/10000 | HLG;ST2084 300/1000/10000 | |
| INPUT | SDI | 1 x 3G SDI | - |
| HDMI | 1 x HDMI 1.4b | 1 x HDMI 1.4b | |
| VGA | 1 | 1 | |
| AV | 1 | 1 | |
| OUTPUT | SDI | 1 x 3G-SDI | - |
| SUPPORTED FORMATS | SDI | 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | - |
| HDMI | 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… | 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… | |
| AUDIO IN/OUT | Speaker | 2 | 2 |
| SDI | 16ch 48kHz 24-bit | 16ch 48kHz 24-bit | |
| HDMI | 8ch 24-bit | 8ch 24-bit | |
| Ear Jack | 3.5mm-2ch 48kHz 24-bit | 3.5mm-2ch 48kHz 24-bit | |
| POWER | Input Voltage | DC12-24V | DC12-24V |
| Power Consuption | ≤36W (15V) | ≤36W (15V) | |
| ENVIRONMENT | Operating Temperature | 0℃~50℃ | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ | -20℃~60℃ | |
| DIMENSION | Dimension(LWD) | 524.8*313.3*19.8mm | 524.8*313.3*19.8mm |
| Weight | 4.8kg | 4.8kg |
