Lilliput PVM150S CCTV monitor
by Lilliput
Availability:
7-10 days delivery
SKU
LIL-PVM150S
- 1920 x 1080 Resolution
- 15.6" IPS LCD Display
- 178/178° H/V Viewing Angles
- 16:9 Aspect Ratio
€548.75
€439.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput PVM150S 15.6" Rack-Mountable 1920 x 1080 LCD Surveillance Monitor
- Power Adapter
- HDMI Cable
- AV Input Cable
- VGA Cable
- Rackmount Bracket
- Desktop Bracket

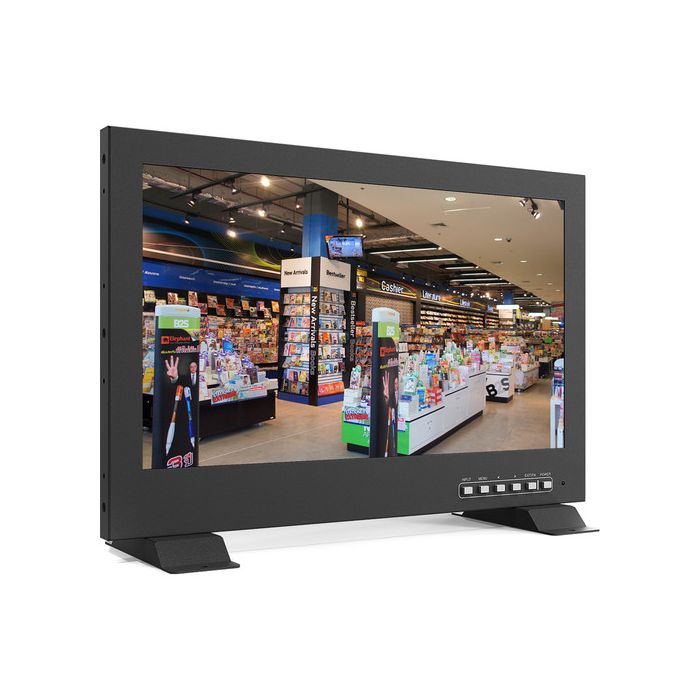

Monitor the feed from your surveillance cameras with the PVM150S 15.6" Rack-Mountable LCD Surveillance Monitor from Lilliput. This unit displays video at a maximum resolution of 1920 x 1080. It features 178° horizontal and vertical viewing angles and a 16:9 aspect ratio. The monitor is equipped with built-in speakers, an HDMI input, a VGA input, a 3G-SDI input & loop output, an AV input, and a headphone jack.
Display
| Screen Size (Diagonal) | 15.6" |
| Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | HDR10, Hybrid Log Gamma |
| Brightness | 1000 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.4 Video 1 x 15-Pin VGA Video 1 x 3G-SDI Video 1 x 1/8" / 3.5 mm Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x SDI – Video |
| USB Ports | 1 x USB 2.0 |
| Ethernet Ports | None |
Audio
| Built-In Speakers | Yes |
| Speaker Configuration | 2-Channel |
Electrical
| Power Consumption | Typical: 24.0 W |
| DC Input Power | 10 to 24 VDC at 2 A |
| Power Adapter Type | External |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
Physical
| Material of Construction | Metal |
| Dimensions | 6.2 x 9.9 x 1.0" / 157.0 x 252.0 x 25.0 mm |
| Weight | 6.33 lb / 2.87 kg |
