Lilliput K2-N Controller with NDI
by Lilliput
Availability:
In stock
SKU
LIL-K2-N

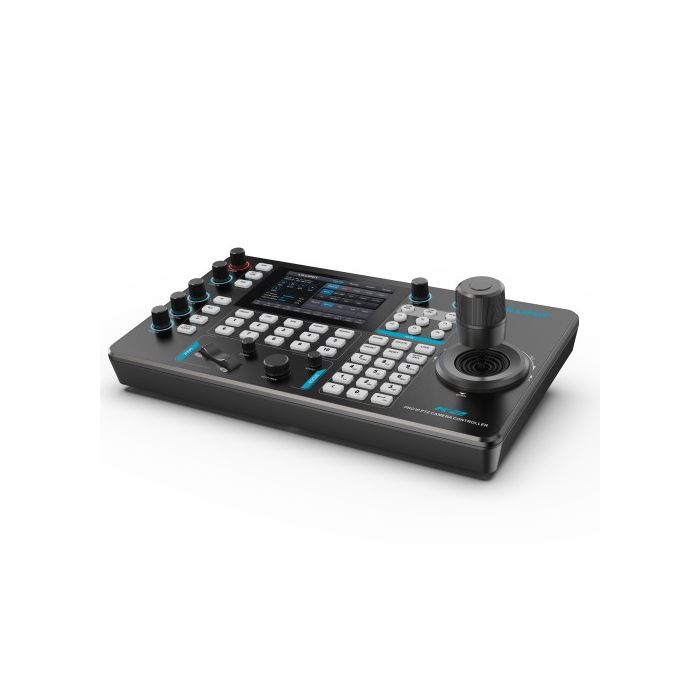

The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput's multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.
€748.75
€599.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput K2-N Controller with NDI
The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput's multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.
- 5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
- Supports real-time preview camera in 5″ screen
- Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
- Control the system via IP, RS-422, RS-485 and RS-232 interface
- Automatically assigns IP addresses to devices for quick setup
- Manage up to 100x independent IP cameras on a single network
- 6 user-assignable buttons for quick access to functions
- Quickly control exposure, iris, focus, pan, tilt and other functions
- Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs
| MODEL NO. | K2-N |
| CONNECTIONS | |
| Interfaces | IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade) |
| Control Protocol | ONVIF, VISCA- IP, NDI |
| Serial Protocol | PELCO-D, PELCO-P, VISCA |
| Serial Baud Rate | 2400, 4800, 9600, 19200, 38400, 115200 bps |
| LAN port standard | 100M×1 (PoE/PoE+: IEEE802.3 af/at) |
| USER | |
| Display | 5 Inch Touch Screen |
| Knob | Quickly control iris, shutter speed, gain, auto exposure, white balance, etc. |
| INTERFACES | |
| Joystick | Pan/Tilt/Zoom |
| Camera Group | 10 (Each group connect up to 10 cameras) |
| Camera Address | Up to 100 |
| Camera Preset | Up to 255 |
| POWER | |
| Power | PoE+ / DC 7~24V |
| Power Consumption | PoE+: < 8W, DC: < 8W |
| ENVIRONMENT | |
| Working Temperature | -20°C~60°C |
| Storage Temperature | -20°C~70°C |
| DIMENSION | |
| Dimension(LWD) | 340×195×49.5mm340×195×110.2mm (With joystick) |
| Weight | Net: 1730g, Gross:2360g |
