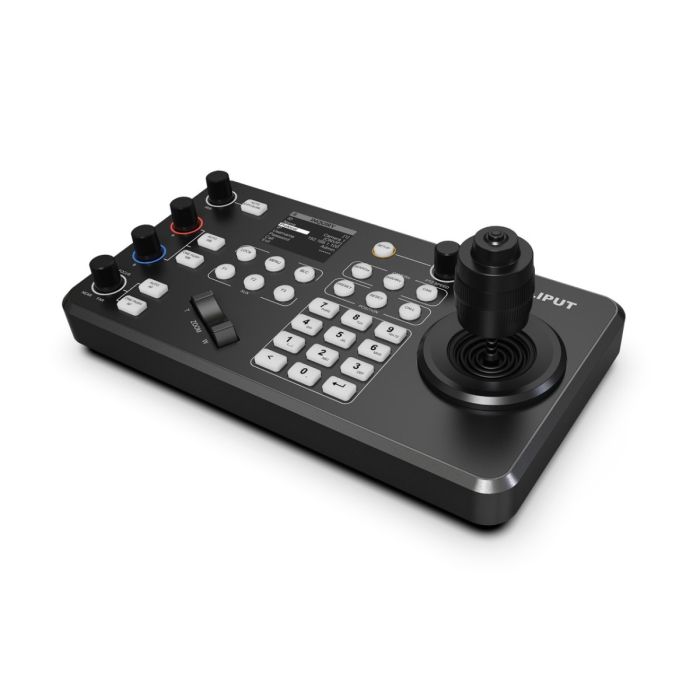

Lilliput K1 Professional IP & Serial PTZ Camera Joystick Controller
by LilliputThe controller offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Cross protocol mix control with IP/ RS 422/ RS 485/ RS 232
Control protocol by VISCA, VISCA Ove r IP, Onvif and Pelco P&D
Control up to 255 IP cameras on one single network
3 camera quick call up keys, or 3 user assignable keys
Tactile feel with professional rocker/seesaw switch for zoom controling
Auto search available IP cameras in one network and assign IP addresses easily
Multi color key illumination indicator directs operation to specific functions
Ally GPIO output for indicating the camera be currently controlled
Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button
PoE and 12V DC power supplies
| CONNECTIONS | Interfaces | IP(RJ45), RS-232, RS-485/RS-422 |
| Control Protocol | IP Protocol: ONVIF, VISCA Over IP | |
| Serial Protocol: PELCO-D, PELCO-P, VISCA | ||
| Serial Baud Rate | 2400, 4800, 9600, 19200, 38400 bps | |
| USER INTERFACES |
||
| Display | 2.2 inch LCD | |
| Joystick | Pan/Tilt/Zoom | |
| Camera shortcut | 3 channels | |
| Keyboard | User-assignable keys×3, Lock×1, Menu×1, BLC×1, Rotation button×5,Rocker×1,Seesaw×1 | |
| Camera Address | Up to 255 | |
| Preset | Up to 255 | |
| POWER | Power | PoE/ DC 12V |
| Power Consumption | PoE: 5W, DC: 5W | |
| ENVIRONMENT | Working Temperature | -20°C~60°C |
| Storage Temperature | -40°C~80°C | |
| DIMENSION | Dimension(LWD) | 270mm×145mm×29.5mm/ 270mm×145mm×106.6mm(With joystick) |
| Weight | 1181g |
