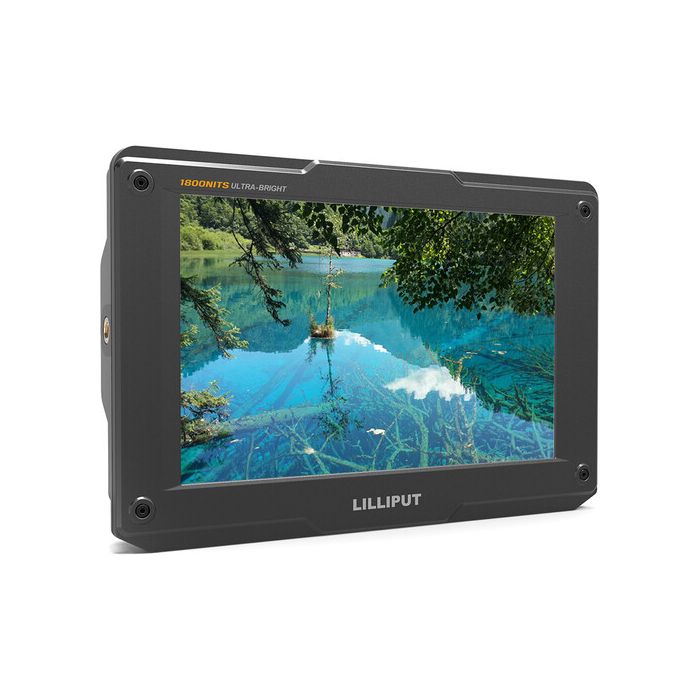

Lilliput H7 4K Monitor with input and loop output
by Lilliput7" 4K 1800-nit High Brightness Monitor
HDR and HLG
3D LUT
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput H7 7" 4K HDMI Ultrabright On-Camera Monitor
- Tilting Shoe Mount Adapter
- Tally Cable
- HDMI Type A to HDMI Type C Cable
- Micro-HDMI to Mini HDMI Cable
- Carry Bag
The Lilliput H7 is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7 is designed for situations when a normal monitor screen just won't cut it.
The 4K HDMI 1.4 compatible input supports up to 4096 x 2160p @ 24p and 3840 x 2160p, and can loop out through to another HDMi input monitor / device.
HDR is a technology that improves the range of color and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed more easily. The Lilliput H7 suupports ST2084 - 300, ST2084 - 1000, ST2084 - 10000, and HLG (Hybrid Log Gamma)
3D LUT (Look Up Table) is a system for ensuring accurate colour representation across all connected devices in a work flow. The Lilliput H7 has 3D LUT capabilities, loaded into the device using a USB port on the ower edge of the monitor. The LUT specification is a 17 x 17 x 17 BGR .cube file.
Ultra high brightness displays are power-hungry beasts, so the need for as much power to be available is paramount. The Lilliput H7 has the capability to use two SONY NP-F970 (or compatible) batteries to allow for the maximum operating time.
With 1/4" BSW thread hole at the bottom of the device, the Lilliput H7 is capable of being mounted on any device that has a Hot Shoe mount attachment point. Included in the box is a mount which allows for 360° rotation on the horizontal axis and 180° tilt on the vertical axis.
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 1800 cd/m2 |
| Contrast Ratio | 1200:1 |
| Dot Pitch | 0.07870 x 0.07875 mm |
| Pixels Per Inch (ppi) | 323 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | HDR |
| Image Controls | Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Screen Markers, Zebra |
| Wi-Fi | None |
| Video | 1 x HDMI Type A (HDMI 1.4b) Input 1 x HDMI Type A (HDMI 1.4b) Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Input |
| Built-In Speaker | 1 x 1 W |
| Other I/O | 1 x Tally (BNC) Input 1 x USB 2.0 (USB Type-A) Input |
| Card Slot | None |
| Video Format | HDMIRGB DCI 4K: 24 UHD 4K: 30/24 DCI 2K 1080p |
| Battery Type | 2 x L-Series |
| Power Consumption | 16 W (Maximum) |
| Mounting | 3 x 1/4"-20 Female |
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Dimensions | 8.9 x 6.1 x 0.9" / 225 x 155 x 23 mm |
| Weight | 18.9 oz / 535 g |
