Lilliput FA1013 Monitor
by LilliputLilliput FA1013 10.1" Field Monitor.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

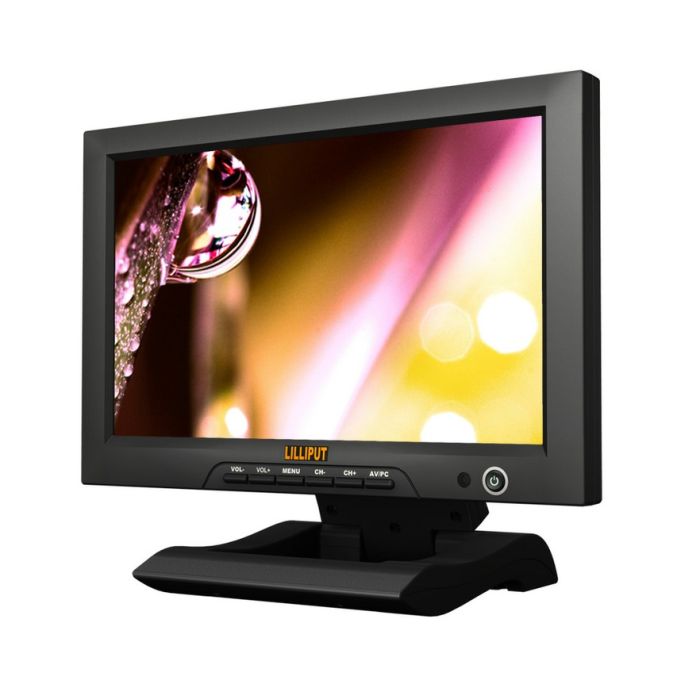

Monitor Composite, Component, or HDMI sources with the Lilliput FA1013 10.1" Field Monitor. Featuring a sharp and bright 1024 x 600 LED LCD display, the FA1013 can display digital or analog SD and HD video signals, leveraging the 16:9 aspect ratio to avoid letterboxing HD video. The Component and Composite analog inputs have loop outputs for daisy-chaining other video equipment. Because of it's compact and portable design, the FA1013 can be implemented into studio, CCTV, A/V, and field production workflows.
As a field monitor, the FA1013 can be mounted in various ways for different purposes. The integrated stand allows for straightforward desk mounting, while 75mm VESA securing points open up more flexible installation options. Additionally, a 1/4"-20 mouting point is available for securing the FA1013 to your camera rig with a separately available arm. Along with the monitor, you'll receive an HDMI to mini-HDMI cable for connecting most common DSLR cameras and a 12V power supply.
|
DISPLAY
|
Panel | 10.1" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/㎡ | |
| Contrast | 500:1 | |
| Viewing Angle | 140°/110°(H/V) | |
|
INPUT
|
HDMI | 1 |
| YPbPr | 3(BNC) | |
| VIDEO | 2 | |
| AUDIO | 1 | |
|
AUDIO
|
Speaker | 1(build-in) |
| Audio Output | ≤1W | |
|
POWER
|
Current | 500mA |
| Input Voltage | DC 6-24V(XLR) | |
| Power Consumption | ≤6W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension | 259 x 170 x 36.5mm(LWD) |
| Weight | 1144g |
