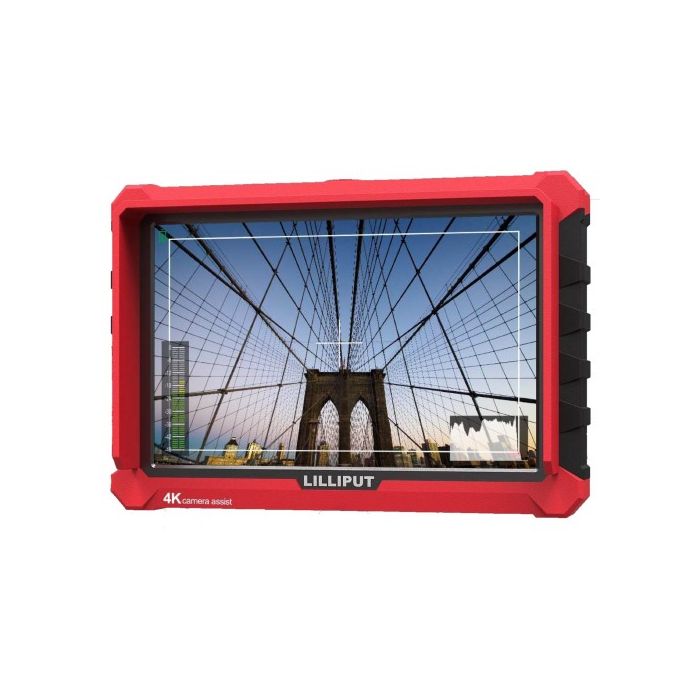

Lilliput A7S Monitor
by LilliputThe Lilliput A7s is the first Lilliput monitor to feature 4K inputs at the 7" screen size.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput A7S 7" Full HD Monitor with 4K Support
- Sony F-970 Type Battery Plate
- Shoe Mount Adapter
- HDMI cable
- Sunhood
The Lilliput A7s is the first Lilliput monitor to feature 4K inputs at the 7" screen size. It's UHD 4K compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1200 LCD panel. If you're a mobile shooter who has upgraded to the 4K workspace, the A7s offers control over your shooting workflow both in the field and in the studio.
7" HDMI Monitor with Widescreen Aspect Ratio
The Lilliput A7s features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolation.
4K HDMI Loopthrough Output
The A7s features an HDMI loop through function - meaning you can connect the output of this monitor via HDMI to any other device with an HDMI input. A great solution for Video Village and extended screen viewing.
Function Mapping to Individual Keys
The A7s has two customisable function keys - meaning you can program them to allow for a shortcut through to your favourite and most used in-monitor functions, without needing to scroll through comprehensive menus.
Advanced Monitor Functionality
As detailed at the top of this description page, the A7s has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.
Battery Plate System for Compatible DSLR Batteries
We supply the monitor with a battery plate compatible with the Sony F-970 type battery, however also available are plates for the Canon LP-E6, the Sony QM91D and the Panasonic DU21. For an addition charge we can supply a V-Mount battery plate, or an Anton Bauer plate.
1/4" BSW Thread Holes, with Shoe Mount Adaptor
There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed
Audio |
|
Speaker | 1x Speaker (c. 1W) 1x Earphone Slot |
Display | |
Aspect Ratio | 16:10 |
Brightness | 500 cdm² |
Contrast Ratio | 1000:1 |
Viewing Angle | 170° x 170° (H/V) |
Environment | |
Operating Temperature | -20°c to 60°c |
Storage Temperature | -30°c to 70°c |
HDMI Video Input | |
HDMI Video Input | 1x HDMI 2.0 (Compatible with UHD 4K 3840 x 2160) |
Power |
|
Current | 1A |
Input Voltage | DC 7-24V |
Power Consumtion | ≤ 12W |
Monitor Specification | |
Screen Size (diagonal) | 7" IPS |
Native Resolution | 1920 x 1200 (Compatible with UHD 4K 3840 x 2160) |
HDMI Output | |
HDMI Video Output | 1x HDMI 2.0 |
Contents Of Box |
|
Product | 1 x A7s Monitor |
Connection Cables | 1 x HDMI A/C cable |
Mounts and stands | 1 x Hot Shoe Mount |
Additional accessories | 1 x Folding sun shade 1 x Silicon rubber case 1 x Battery plate (F970) |
Dimensions |
|
Height (mm) | 124 mm |
Width (mm) | 182.1 mm |
Depth (mm) | 20.5mm |
Weight (g) | 320g |
