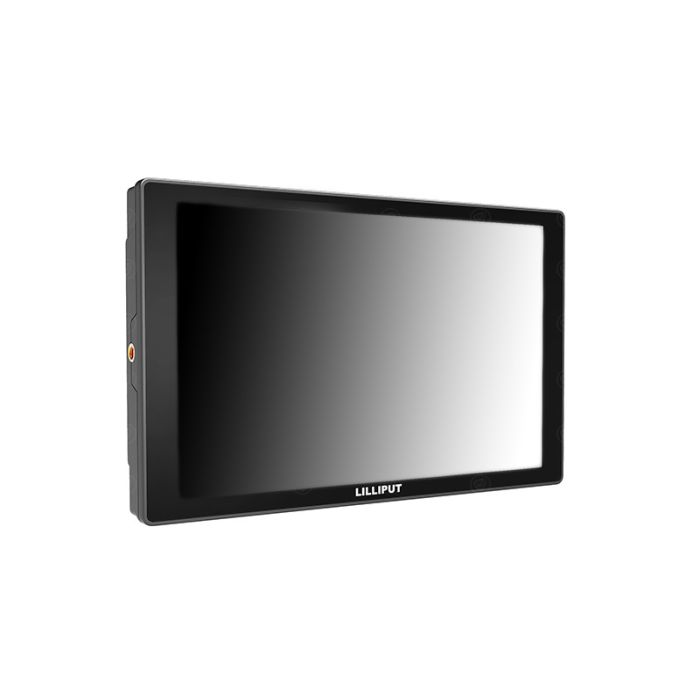

Lilliput A11 Monitor
by LilliputLilliput A11 4K camera top monitor
HDMI & 3G-SDI support
G + G technology
Level Meter, Histogram, Check Field, Peaking, False Color, Image Flip, Overscan, Underscan, Image Freeze
Center and screen markers
8-bit IPS LED backlight technology
built-in stereo speakers
Powered by AC adapter or NP-F battery
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Lilliput A11 monitor
Lilliput A11 4K camera top monitor
HDMI & 3G-SDI support
G + G technology
Level Meter, Histogram, Check Field, Peaking, False Color, Image Flip, Overscan, Underscan, Image Freeze
Center and screen markers
8-bit IPS LED backlight technology
built-in stereo speakers
Powered by AC adapter or NP-F battery
Features:
Resolution: FHD (1920 x 1200)
Picture Size: 16 : 10
Brightness: 300 Nits
Contrast Ratio: 1000: 1
Viewing Angle (H / V): 175 ° / 175 °
8 Bit IPS LED Backlight Technology
Built-in Stereo Speakers
Powered by AC adapter or NP-F battery mount (also available as optional) V-Mount or Gold-Mount available)
Runtime according to the manufacturer with a NP-F970 battery: 4 hours
4x 1/4 "thread, for vertical or horizontal mounting
Features:
Level Meter
Exposure
Peaking
Aspect Ratio
False Color
Zoom
Histogram
Check Field
Image Flip
Overscan
Underscan
Image Freeze
Grid
Center Marker
Screen Marker
Color Temperature
Connections:
1x 3G-SDI / HD-SDI / SDI In
1x 3G-SDI / HD- SDI / SDI Out (Loop Through)
1x HDMI 1.4 In (Supports 4K @ 30Hz)
1x HDMI 1.4 Out (Supports 4K @ 30Hz)
1x VGA In
1x USB In (for Software Updates)
1x headphones, 3.5 mm stereo jack (f)
General:
Dimensions (WxHxD): 25.2 x 15.7 x 2.5 cm
Weight: approx. 550 g
Power supply: DC in, 7 - 24 V. or via various optional battery mounts
External power supply is guaranteed only with Lilliput own power supply to 100%, because the Lilliput hollow plug connections may deviate from the regular measures
Power consumption: max. 13 W
Included Accessories:
AC adapter
VESA Battery Mount for Sony NP-F Batteries
HDMI cable
Sun protection
hot shoe adapter
Optional accessories:
V-Mount battery plate
gold Mout battery plate
VESA stand
Gimbal Bracket
