Lilliput 969A/O/P Monitor

by Lilliput
Raspoloživost: Isporuka 7-10 dana
SKU
LIL-969A/O/P

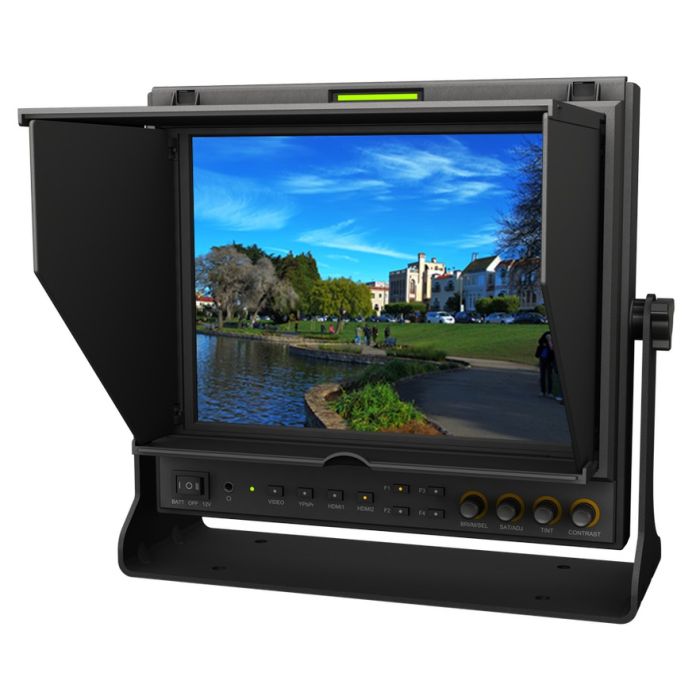

The Lilliput 969A/O/P is a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood. Optimised for studio and video editing work.

Regularna cijena 2.425,00 kn Posebni popust 2.303,75 kn 1.843,00 kn
-5%

The Lilliput  969A/O/P is a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood. Optimised for studio and video editing work.

Note: 969A/P     (with dual HDMI inputs, with BNC interfaces)
           969A/O/P (with dual HDMI inputs & one HDMI output, with BNC interfaces)

9.7 inch monitor with 4:3 aspect ratio

The 9.7" LCD used in  969A/O/P is the ideal size for a small broadcast monitor. Large enough to pick out the finest details in a shot, but small enough to fit on any desk.

Physical high resolution broadcast monitor

High resolution is important to broadcast monitors because the higher resolution, the more detail you see. The physical high resolution (1024×768 pixels) provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content.

600:1 contrast ratio

Lilliput understand that accurate colour representation is a vital attribute of a broadcast monitor. That's why  969A/O/P features a 600:1 contrast ratio LCD with IPS technology.

178° viewing angles

Broadcast monitors are often viewed by many different people at all angles, so the 178 degree viewing angle ensures the content does not get distorted.

Foldable sunhood becomes screen protector

Foldable sunhoods are now included across all Lilliput's pro-AV products. 969A/O/P's smart sunhood folds away to be a screen protector for the LCD, ideal for broadcast environments where mini monitors are exposed to lots of moving around!

1:1 pixel mapping - find the finest details

969A/O/P shows you the true detail your still shots. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.

Better Advanced Functions

Providing advanced camera auxiliary functions. Peaking, False Color, Histogram & Exposure, etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images,  969A/O/P makes photoing & recording even easier with its functionality. Values can be adjust under Level Meter, Peaking & Exposure functions, etc.

HDMI video output - no annoying splitters

 969A/O/P includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

Complete range of AV inputs

 969A/O/P includes all the AV connections that a broadcast professional needs. Composite and component through BNC connectors and two HDMI inputs cover all the bases for common broadcast applications.

DISPLAY
  Panel   9.7" IPS
  Physical Resolution   1024×768, support up to 1920×1080
  Aspect Ratio   4:3
  Brightness   400cd/㎡
  Contrast   600:1
  Viewing Angle   178°/178°(H/V)
INPUT
  HDMI   2
  YPbPr   3(BNC)
  VIDEO   1
  TALLY   1
  AUDIO   2(L/R)
OUTPUT
  HDMI   1(optional)
  YPbPr   3(BNC)
  VIDEO   1
  USB   1(5V for charging)
AUDIO
  Speaker   1(build-in)
  Ear Phone Slot   1
POWER
  Current   1500mA
  Input Voltage   DC 7-24V (XLR)
  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤18W
ENVIRONMENT
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION
  Dimension(LWD)   246×224×31/167.5mm (with cover)
  Weight   1068g / 1388g (with cover)
