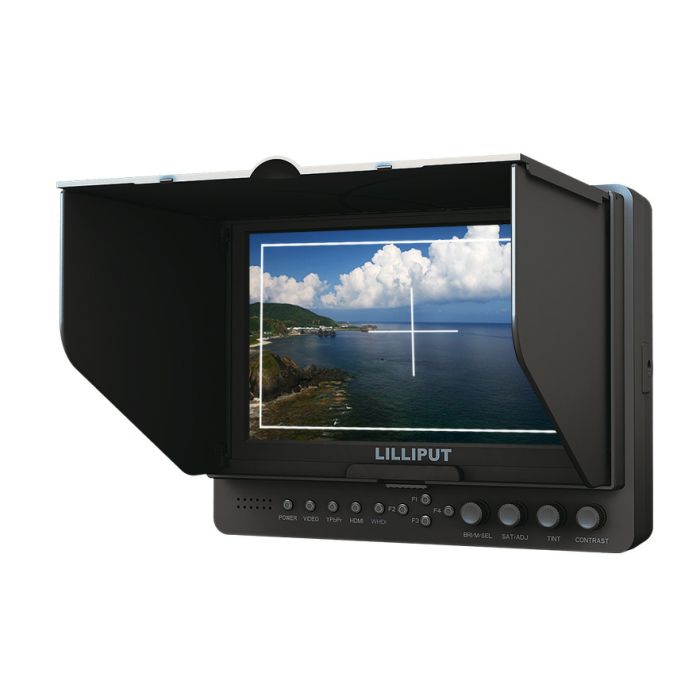

Lilliput 665/O/P/WH Monitor
by LilliputThe 665/P/WH is a 7" wireless HDMI Monitor with WHDI, HDMI, YPbPr, component video, peaking functions, focus assistance and sun hood. Optimised for for DSLR & Full HD Camcorder.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
The 665/O/P/WH 7" Wireless HDMI Monitor from Lilliput offers WHDI wireless monitoring in addition to standard HDMI, YPbPr, and composite video monitoring. The panel has an 800:1 contrast ratio which offers deep blacks and bright whites in a 1024 x 600 resolution. The monitor works on a wide 7-24 VDC power input range, making it suitable for use in most power sources. The built-in 1W speaker provides clear audio output. F970 and LP-E6 battery plates are included.
- 1024 x 600 resolution
- 800:1 contrast ratio offers deep blacks and bright whites
- 7-24 VDC range
- 250 cd/m² brightness for clear viewing
- Hard coating with EWV film
Note: 665/P/WH (with advanced functions, wireless HDMI input)
665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output)
665/WH (Wireless HDMI input)
665/O/WH (Wireless HDMI input & HDMI output)
|
DISPLAY
|
Panel | 7" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/㎡ | |
| Contrast | 800:1 | |
| Viewing Angle | 160°/150°(H/V) | |
|
INPUT
|
WHDI | 1 |
| HDMI | 1 | |
| YPbPr | 3(BNC) | |
| VIDEO | 1 | |
| AUDIO | 1 | |
|
OUTPUT
|
HDMI | 1(optional) |
| VIDEO | 1 | |
|
POWER
|
Current | 800mA |
| Input Voltage | DC 7-24V(XLR) | |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤10W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 194.5×150×38.5 / 158.5mm (with cover) |
| Weight | 560g / 720g (with cover) | |
|
VIDEO FORMAT
|
WHDI(wireless HDMI) |
1080p 60/50/30/25/24Hz |
| HDMI | 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz 1080i 60/59.94/50Hz, 1035i 60/59.94Hz 720p 60/59.94/50/30/29.97/25Hz 576i 50Hz, 486i 60/59.94Hz, 480p 59.94Hz |
