Laowa Sword Cine 6-Lens Bundle (15mm, 25mm, 35mm, 60mm, 100mm, 180mm) (Cine) Arr

by Laowa
Availability: 7-10 days delivery
SKU
VESW6LENSPL

15, 25, 35, 60, 100 & 180mm Lenses
Full-Frame Coverage

€10,270.50 €8,216.40

Package includes

  • Venus Optics Laowa Sword 15mm T4.1 1x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus Optics Laowa Sword 25mm T2.9 1x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus Optics Laowa Sword 35mm T2.9 1x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus Optics Laowa Sword 60mm T2.9 2x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus Optics Laowa Sword 100mm T2.9 2x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap
  • Venus Optics Laowa Sword 180mm T4.6 1.5x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap

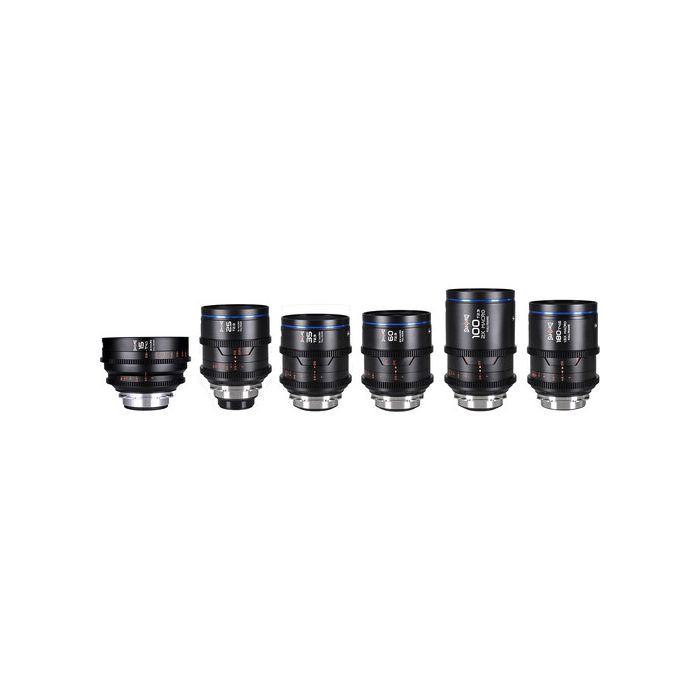

The Venus Optics Laowa Sword Macro Cine 6-Lens Set includes six focal lengths for most cases. This ARRI PL full frame-compatible set features 15, 25, 35, 60, 100, and 180mm focal lengths. The 25, 35, 60, and 100mm lenses share cine-standard gearing, front diameters, filter threads, and aperture ranges for easy switching. The 15mm lens has a T4.1 to T32 aperture range, and the 180mm lens has a T4.6 to T32 aperture range. See below for more information on the individual lenses included in this kit.

Venus Optics Laowa Sword 15mm T4.1 1x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 15mm T4.1 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 15mm lens features a T4.1 to T32 aperture range and is constructed of 12 elements in 9 groups. Create a shallow depth of field and dreamy bokeh with the 14-blade iris. This focal length has a 1x magnification ratio and a 4.7" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 84° and the iris ring 37° for intuitive manual adjustments. A 110° angle of view ensures your subject remains in the frame. The 15mm version has a 100mm outer diameter and 95mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T4.1 to T32 aperture range
  • 14-blade iris, optical construction of 12 elements in 9 groups
  • 100mm outer diameter, 95mm filter thread
  • 0.03" minimum focus distance
  • 84° focus and 37° iris rotation
  • 43.2mm image circle, 110° angle of view

Venus Optics Laowa Sword 25mm T2.9 1x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 25mm T2.9 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 25mm lens features a T2.9 to T22 aperture range and is constructed of 13 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 7-blade iris. This focal length has a 1x magnification ratio and a 6.6" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 100°, and the iris ring 40° for intuitive manual adjustments. An 82° angle of view ensures your subject remains in the frame. Like most of the series, the 25mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T2.9 to T22 aperture range
  • 7-blade iris, optical construction of 13 elements in 10 groups
  • 80mm outer diameter, 77mm filter thread
  • 6.6" minimum focus distance
  • 100° focus and 40° iris rotation
  • 43.2mm image circle, 82° angle of view

Venus Optics Laowa Sword 35mm T2.9 1x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 35mm T2.9 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 35mm lens features a T2.9 to T22 aperture range and is constructed of 13 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 1x magnification ratio and a 7" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 270°, and the iris ring 59° for intuitive manual adjustments. A 63° angle of view ensures your subject remains in the frame. Like most of the series, the 35mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T2.9 to T22 aperture range
  • 13-blade iris, optical construction of 13 elements in 10 groups
  • 80mm outer diameter, 77mm filter thread
  • 7" minimum focus distance
  • 270° focus and 59° iris rotation
  • 43.2mm image circle, 63° angle of view

Venus Optics Laowa Sword 60mm T2.9 2x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 60mm T2.9 2x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 60mm lens features a T2.9 to T22 aperture range and is constructed of 14 elements in 11 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 2x magnification ratio and an 8.3" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 160°, and the iris ring 73° for intuitive manual adjustments. A 40° angle of view ensures your subject remains in the frame. Like most of the series, the 60mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T2.9 to T22 aperture range
  • 13-blade iris, optical construction of 14 elements in 11 groups
  • 80mm outer diameter, 77mm filter thread
  • 8.3" minimum focus distance
  • 160° focus and 73° iris rotation
  • 43.2mm image circle, 40° angle of view

Venus Optics Laowa Sword 100mm T2.9 2x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 100mm T2.9 2x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 100mm lens features a T2.9 to T22 aperture range and is constructed of 12 elements in 10 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 2x magnification ratio and a 9.7" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 220°, and the iris ring 65° for intuitive manual adjustments. A 24° angle of view ensures your subject remains in the frame. Like most of the series, the 100mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T2.9 to T22 aperture range
  • 13-blade iris, optical construction of 12 elements in 10 groups
  • 80mm outer diameter, 77mm filter thread
  • 9.7" minimum focus distance
  • 220° focus and 65° iris rotation
  • 43.2mm image circle, 24° angle of view

Venus Optics Laowa Sword 180mm T4.6 1.5x Macro Cine Lens (ARRI PL)

Designed for full-frame camera sensors, the Laowa Sword 180mm T4.6 1.5x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 180mm lens features a T4.6 to T32 aperture range and is constructed of 12 elements in 9 groups. Create a shallow depth of field and dreamy bokeh with the 13-blade iris. This focal length has a 1.5x magnification ratio and a 12" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 270°, and the iris ring 61° for intuitive manual adjustments. A 14° angle of view ensures your subject remains in the frame. Like most of the series, the 100mm version has an 80mm outer diameter and 77mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T4.6 to T32 aperture range
  • 13-blade iris, optical construction of 12 elements in 9 groups
  • 80mm outer diameter, 77mm filter thread
  • 12" minimum focus distance
  • 270° focus and 61° iris rotation
  • 43.2mm image circle, 14° angle of view
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 15mm
Maximum Aperture T4.1
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 95 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T4.1
Minimum Aperture T32
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 100°
Focus Scales Metric, Imperial
Optical Design
12 Elements in 9 Groups
Filter Thread 95 mm
Minimum Focus Distance From Unspecified Point in Lens: 4.7" / 12 cm
Maximum Magnification Ratio 01:01
Diaphragm Blades 14
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 84°
  Iris: 37°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.9" / 100 mm
Length 2.65" / 67.27 mm
Weight 22.6 oz / 640 g
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 7.8 x 6.2 x 5.3"
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 25mm
Maximum Aperture T2.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 82°
Focus Scales Metric, Imperial
Optical Design
13 Elements in 10 Groups
Filter Thread 77 mm
Minimum Focus Distance
From Unspecified Point in Lens: 6.6" / 16.8 cm
Maximum Magnification Ratio 01:01
Diaphragm Blades 7
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 100°
  Iris: 40°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.1" / 80 mm
Length 3.72" / 94.56 mm
Weight 1.7 lb / 755 g
Packaging Info
Package Weight 3.225 lb
Box Dimensions (LxWxH) 9.5 x 6 x 5.3"
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 35mm
Maximum Aperture T2.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 63°
Focus Scales Metric, Imperial
Optical Design
13 Elements in 10 Groups
Filter Thread 77 mm
Minimum Focus Distance
From Unspecified Point in Lens: 7.0" / 17.8 cm
Maximum Magnification Ratio 01:01
Diaphragm Blades 13
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 270°
  Iris: 59°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.1" / 80 mm
Length 3.72" / 94.56 mm
Weight 1.7 lb / 750 g
Packaging Info
Package Weight 2.86 lb
Box Dimensions (LxWxH) 8.1 x 5.1 x 5"
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 60mm
Maximum Aperture T2.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 40°
Focus Scales Metric, Imperial
Optical Design
14 Elements in 11 Groups
Filter Thread 77 mm
Minimum Focus Distance
From Unspecified Point in Lens: 8.3" / 21 cm
Maximum Magnification Ratio 2.0:1
Diaphragm Blades 13
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 160°
  Iris: 73°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.1" / 80 mm
Length 4.45" / 112.93 mm
Weight 1.6 lb / 736 g
Packaging Info
Package Weight 3 lb
Box Dimensions (LxWxH) 8.1 x 5 x 4.9"
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 100mm
Maximum Aperture T2.9
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T2.9
Minimum Aperture T22
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 24°
Focus Scales Metric, Imperial
Optical Design
12 Elements in 10 Groups
Filter Thread 77 mm
Minimum Focus Distance
From Unspecified Point in Lens: 9.7" / 24.7 cm
Maximum Magnification Ratio 2.0:1
Diaphragm Blades 13
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 220°
  Iris: 65°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.1" / 80 mm
Length 5.5" / 139.5 mm
Weight 2.1 lb / 957 g
Packaging Info
Package Weight 3.525 lb
Box Dimensions (LxWxH) 9.2 x 5.4 x 5.2"
Venus Optics Sword FF Macro 6-Lens Set Specs

Key Specs
Focal Length 180mm
Maximum Aperture T4.6
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 77 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T4.6
Minimum Aperture T32
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 14°
Focus Scales Metric, Imperial
Optical Design
12 Elements in 9 Groups
Filter Thread 77 mm
Minimum Focus Distance
From Unspecified Point in Lens: 12.0" / 30.6 cm
Maximum Magnification Ratio 1.5:1
Diaphragm Blades 13
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 270°
  Iris: 61°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.1" / 80 mm
Length 4.93" / 125.21 mm
Weight 1.6 lb / 734 g
Packaging Info
Package Weight 3.215 lb
Box Dimensions (LxWxH) 9.2 x 5.3 x 5.2"
