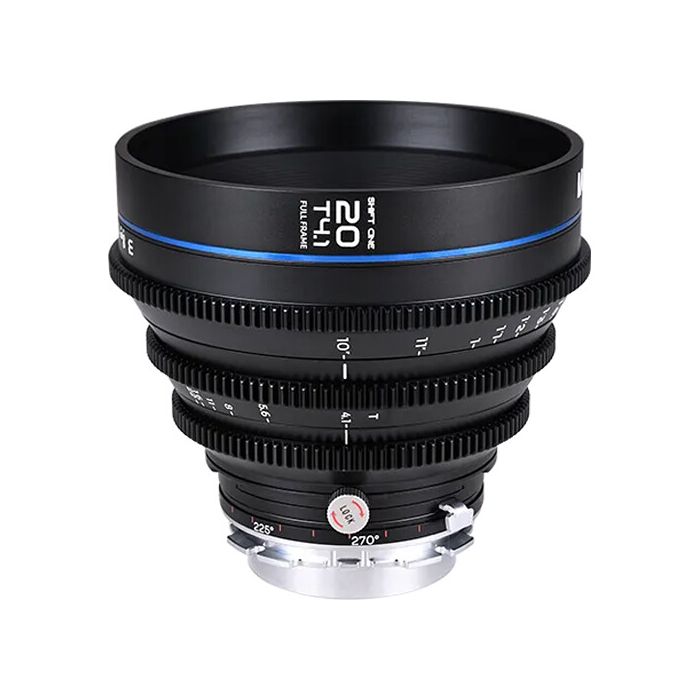

Laowa 20mm T4.1 Zero-D Shift Cine Lens Arri PL
by LaowaFull Frame & VV | T4.1 to T22 Aperture
±11mm Shift Function
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Venus Optics Laowa 20mm T4.1 Zero-D Shift Cine Lens (ARRI PL)
- Shim Set
- Screwdriver
- Hard Case
Capture wide-angle shots with the Laowa 20mm T4.1 Zero-D Shift Cine Lens from Venus Optics. The 20mm lens can be used with ARRI PL mount cameras sporting full-frame or VisaVision image sensors thanks to its 65.2mm image circle, making it compatible with the RED V-RAPTOR 8K VV, the ARRI ALEXA, and the Blackmagic URSA cine cameras. The lens features a ±11mm shift capability on VistaVision sensors, which helps cinematographers correct converging lines and maintain straight architecture/interiors.
The lens construction consists of 16 elements in 11 groups, a 14-blade aperture, and an aperture range of T4.1 to T22. Its compact focal length and 117° shifted FOV ensure you don't miss any of the action. A Zero-D design consisting of low-distortion optics helps create precise framing. Close-focusing capabilities allow you to zero in on objects 9.9" away with ease. The lenses in the series feature interchangeable lens mounts and include a shim set for calibration. Transport it all with the included hard case.
- Covers full-frame and VistaVision image sensors
- 117° shifted FOV, 94.4° regular FOV
- 9.8" minimum focus distance
- ±11mm shift on VistaVision cameras, ±9mm shift on full-frame cameras
- 16 elements in 11 groups, 14-blade aperture
- Interchangeable mount design
| Focal Length | 20mm |
| Maximum Aperture | T4.1 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full-Frame |
| VistaVision | |
| Filter Thread | 114 mm |
| Image Stabilization | No |
| Electronic Communication | No |
| Maximum Aperture | T4.1 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full-Frame |
| VistaVision | |
| Image Circle | 65.2 mm |
| Angle of View | Full Frame |
| Horizontal: 117° | |
|
Horizontal: 94.4°
|
|
| Focus Scales | Metric, Imperial |
| Optical Design |
16 Elements in 11 Groups
|
| Filter Thread | 114 mm |
| Minimum Focus Distance | 9.8" / 25 cm |
| Aperture/Iris Blades | 14 |
| Image Stabilization | No |
| Lens Mounting | No |
| Gear Standard | MOD |
| Gear Rotation |
Not Specified by Manufacturer
|
| Electronic Communication | No |
| Diameter | 4.5" / 114 mm |
| Length | 3.9" / 100 mm |
| Weight | 2.58 lb / 1.17 kg |
| Packaging Info | |
| Package Weight | 9.465 lb |
| Box Dimensions (LxWxH) |
14.3 x 11.8 x 9.1"
|
