Decimator DMON-QUAD

by Decimator Design
Availability: 7-10 days delivery
SKU
DD-DMON-QUAD

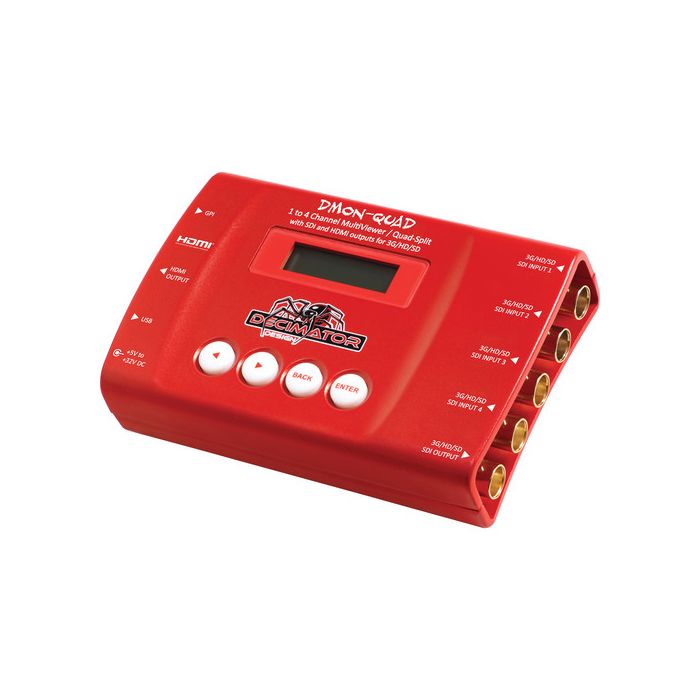

DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications.

€408.25 €326.60

Package includes

  • DECIMATOR DMON-QUAD 4-Channel 3G-SDI Multiviewer
  • Power Supply
  • HDMI Cable
  • USB Cable

The DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display. Tally information can be supplied via the RJ-45 connector.

  • Supports 3G-SDI level A and B on inputs and output, allowing conversion between 3G level A and B
  • Comes with pre-programmed layouts, user-customized layouts possible
  • 16-character UMD overlay and 8-channel audio metering overlay per window with individual on/off, custom positioning, and size adjustment
  • Horizontal and/or vertical image flipping per window
  • Audio ID overlay
  • Tallies can be applied to either tally boxes or the border (tally boxes allow for up to 4 tallies per window)
  • Fast switching between inputs using full-screen scaling
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Low latency frame buffering for each input allowing non-synchronous inputs
  • Linked SDI and HDMI outputs
  • Each SDI inputs is resolution and frame rate independent
  • Pass through mode allows an unprocessed signal to be output from both SDI and HDMI terminals simultaneously
  • Robust aluminum enclosure
Inputs 4 x BNC, SD/HD/3G-SDI
1 x USB Mini-B, control and updates
1 x RJ-45, UMD and Tallies via RS-422/485
Outputs 1 x SD/HD/3G-SDI
1 x HDMI
Resolution Support SDI:
1080p 23.98/24/29.97/30/50/59.94/60
1080PsF 23.98/24/29.97/30
1080i 50/59.94/60
720p 23.98/24/29.97/30/50/59.94/60
NTSC
PAL

HDMI:
1080p 23.98/24/29.97/30/50/59.94/60
1080PsF 23.98/24/29.97/30
1080i 50/59.94/60
720p 23.98/24/29.97/30/50/59.94/60
NTSC
PAL
Power Input: 5-32 VDC, locking coaxial (center positive)
Dimensions 3.1 x 4.8 x 1.2" / 8 x 12.3 x 3 cm
