Decimator DMON-4S

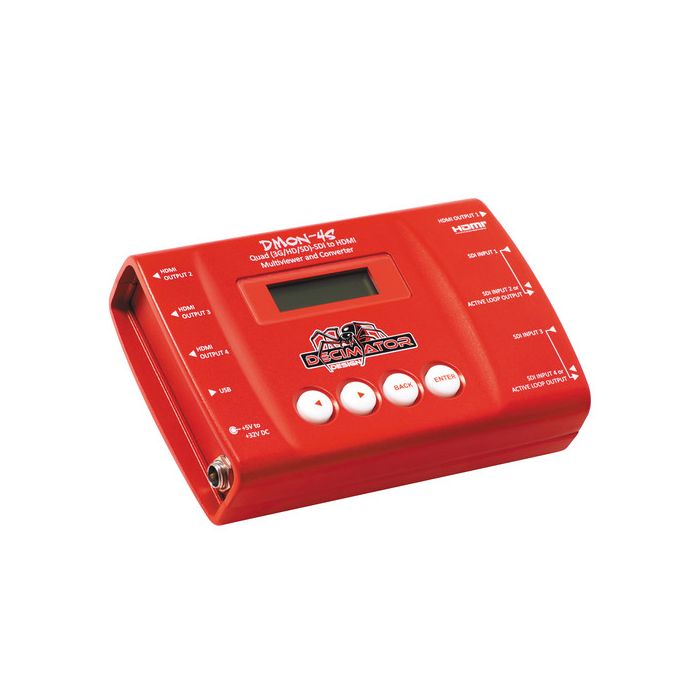

by Decimator DesignECIMATOR DMON-4S 4 x SD/HD/3G-SDI to HDMI Converter with Quad Multi-Viewer Function allows you to convert four separate SDI streams to either four independent mini HDMI outputs, or combine the SDI inputs into a Quad-Split HDMI output.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DECIMATOR DMON-4S 4 x SD/HD/3G-SDI to HDMI Converter with Quad Multi-Viewer Function
- Universal Power Supply
- HDMI Cable
- USB Cable
Packing four independent SDI to HDMI converters into a small field friendly package the DECIMATOR DMON-4S 4 x SD/HD/3G-SDI to HDMI Converter with Quad Multi-Viewer Function allows you to convert four separate SDI streams to either four independent mini HDMI outputs, or combine the SDI inputs into a Quad-Split HDMI output. The unit supports SD/HD/3G-SDI formats featuring automatic signal detection, and the built-in LCD info screen and button controls allow you to set your output options without resorting to DIP switch settings or connecting the unit to a computer.
You can set the converter to convert four SDI inputs to four HDMI outputs, combine the four SDI inputs into a Quad-Split HDMI output on one or all four of the HDMI outputs. You can also set the unit to convert two SDI inputs to HDMI, and use the other two SDI inputs as loop through outputs. When in Quad-Split mode, you can assign the audio from any input to be used as the audio for every output. The threaded locking power socket helps prevent accidental power loss from kickouts.
Inputs | SD/HD.3G-SDI: 4 x BNC |
Outputs | HDMI: 4 x Type C |
SDI Formats Supported | 3G: SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50 Hz HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz SD: SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50 |
Control Buttons |
|
Power | 5 to 32 VDC Pin Positive |
Dimensions | 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm |
