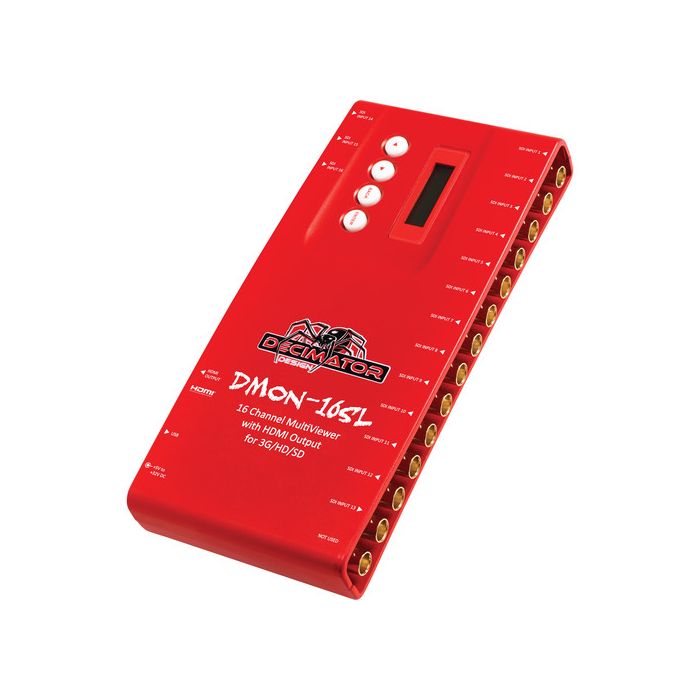

Decimator DMON-16SL
by Decimator DesignMake an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DECIMATOR DMON-16SL 16-Channel SDI Multiviewer with HDMI Output
- Universal Power Supply
- HDMI Cable
- USB Cable
Make an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches.
The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display.
Features
- Custom layouts with various standard layouts
- Audio ID overlay
- Load and restore custom layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Variable aspect ratios per window
| Inputs | 16 x SD/HD/3G-SDI 1 x USB |
| Outputs | HDMI Type A |
| Video Input Format | 3G-SDI (SMPTE 424M@2.97 and 2.967 Gb/s): • 1080p@60/59.94/50 Hz HD-SDI (SMPTE 292M/274M/296M@1.485 and 1.435 Gb/s): • 1080i@60/59.94/50 Hz • 1080p/psf@30/29.97/25/24/23.98 Hz • 720p@60/59.94/50/30/29.97/25/24/23.98 Hz SD-SDI (SMPTE 259M@270 Mb/s): • 625i50 Hz • 525i59.94 Hz |
| Video Output Format | HDMI: • 1080p@60/59.94/50 Hz • 1080i@60/59.94/50 Hz • 1080p@30/29.97/25/24/23.98 Hz • 720p@60/59.94/50/30/29.97/25 Hz • 625i50 Hz • 525i59.94 Hz |
| Power Input | 5 to 35 VDC Center positive |
| Dimensions | 8.7 x 4.1 x 1.2" / 220 x 103.7 x 29.5 mm |
