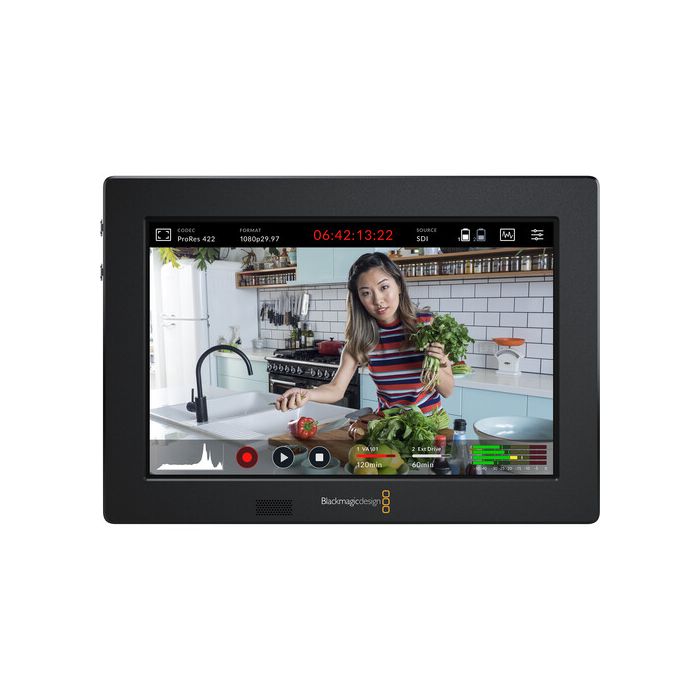

Blackmagic Design Video Assist 7" 3G
by Blackmagic Design1920 x 1080 7" Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
Stores to 2 x SDHC/SDXC Memory Cards
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Blackmagic Design Video Assist 7" 3G
Blackmagic Video Assist 7” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 135° |
| Touchscreen | Yes |
| Maximum Brightness | 310 cd/m2 |
| Pixels Per Inch (ppi) | 323 ppi |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video | 1 x HDMI Type A Input 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output |
| HDCP Support | Yes |
| Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
| Audio | 2 x Mini-XLR Input 1 x 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB Type-C 1 x LANC (2.5 mm) Input |
| Card Slot | 2 x SD |
| Wi-Fi | None |
| Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Pulldown Conversion | None |
| Camera Trigger | None |
| Pre-Roll Record | None |
| Encoding Formats | Up to 1920 x 1080 ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks | 16 |
| Recording Media | 1 x SDXC (UHS-I) |
| Metadata Tagging | Yes |
| Timecode Support | SMPTE 12M via Embedded SDI / Embedded HDMI |
| Phantom Power | None |
| DC Input Power | 12 VDC |
| Battery Type | 2 x L-Series |
| Mounting | 6 x 1/4"-20 Female |
| Operating Humidity | 0 to 90% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
| Weight | 1.82 lb / 825 g |
